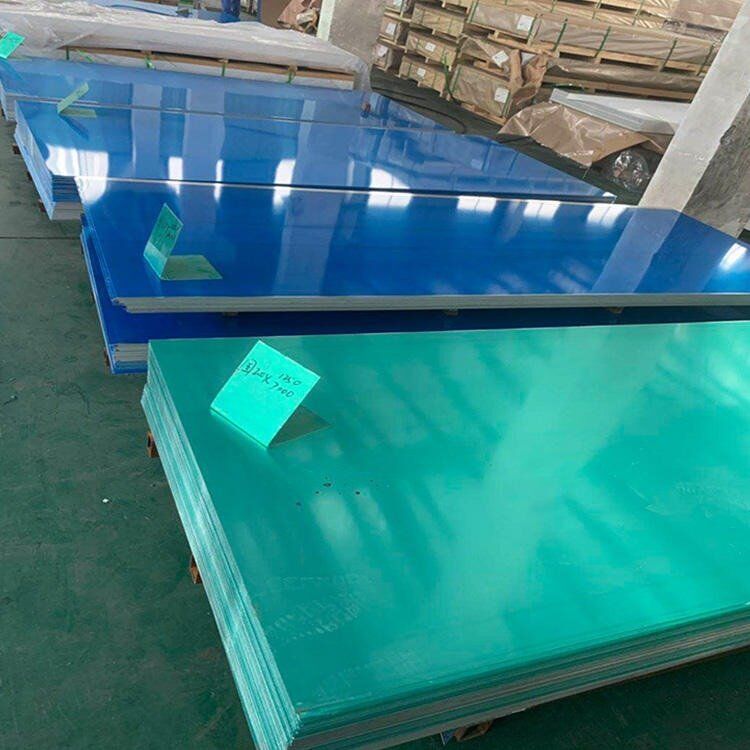

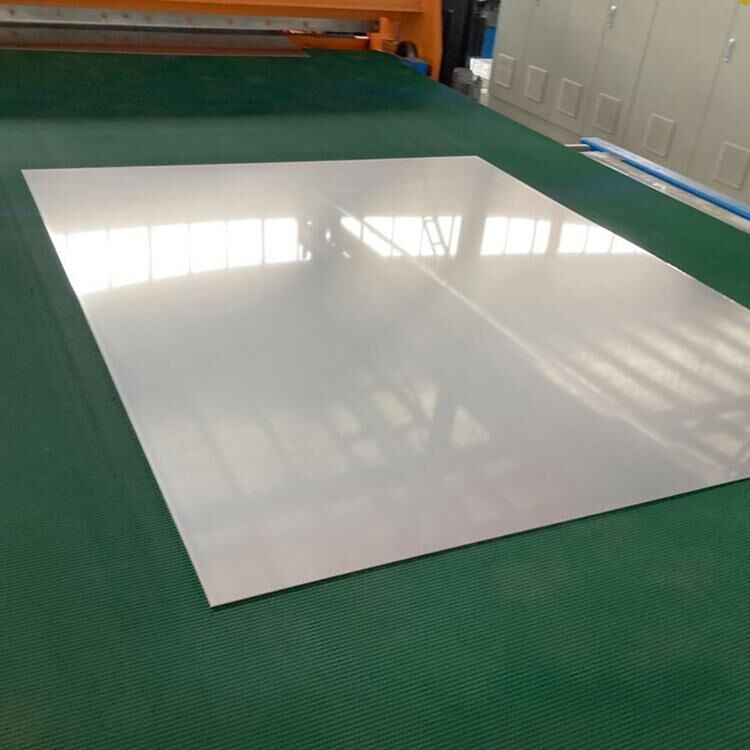

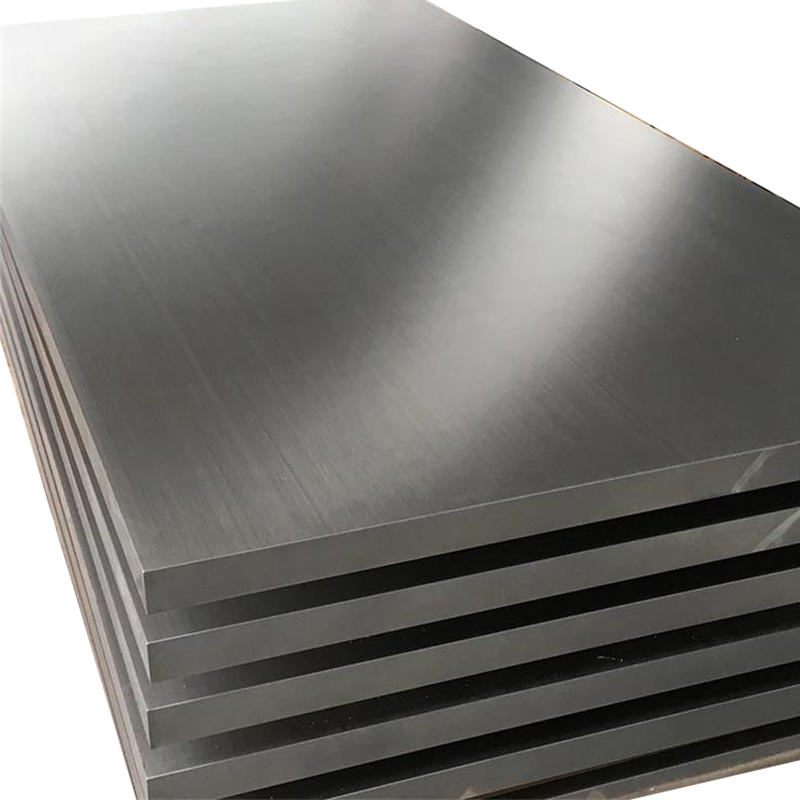

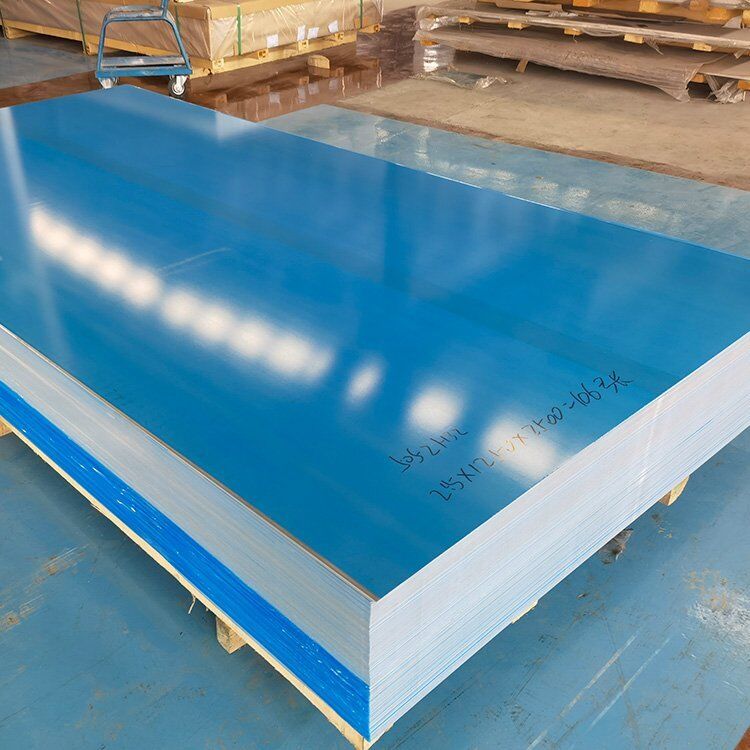

5000 Series 5082 Aluminum Plate sheet

5000 Series 5082 Aluminum Plate sheet 6061 Series Aluminum Plate sheet ,6061 Series Aluminum round pipe , 6061 Series Aluminum rod , 6061 Series Aluminum coil

Email : kyra@zzmetal.com

Whatsapp : 008613026578856

Product Description

Product description

Aluminum plate is a kind of rectangular plate processed by aluminum ingot. It can be used in a wide range of applications, including lighting, household appliances and furniture in daily life, as well as indoor decoration and decoration. In the industrial field, it can also be used in the processing of mechanical parts and the production of molds.

Classification of aluminum plates

Aluminum plate according to the amount of aluminum can be divided into pure aluminum plate, aluminum alloy aluminum plate.

The aluminum content of pure aluminum plate can reach 99 percent, which is the most aluminum content in aluminum plate. Moreover, pure aluminum plate does not contain other elements, and the price is cheaper compared with other types of aluminum plate.

Aluminum alloy aluminum plate is mainly composed of alloy elements, the aluminum content is far less than pure aluminum plate, but it has some special properties, can be used in special environments, such as aerospace equipment or ships.

Aluminum plate can be divided into thin aluminum plate, conventional aluminum plate, medium thick aluminum plate and thick aluminum plate according to its thickness.

The thickness of aluminum plate is the type of aluminum plate. The thickness of the thin aluminum plate is 0.15-2.0 mm; The thickness of conventional aluminum plate is between 20.-6.0 mm; The thickness of the medium thickness aluminum plate is between 6.0 and 25.0 mm; The thickness of thick aluminum plate is between 25 and 200 mm; Aluminum plates above 200 mm are considered super thick.

This major series of this series aluminum plate provided by Bohzong includes 5005, 5052, 5754, 5083 series.

5000 Series Aluminum Plate
Width:500-1500mm
Thickness:2-25mm
Length:2000-8000mm
Application:decoration, outer shell for household products
Packing:blank waterproof paper , kraft, wooden case or pallet (fumigation report for the wooen packing material )
Grade:5005 5052 5083 5086 5154 5182 5251 5754 etc.
Features Very good elongation, anticorrosion performance

5000 Aluminum Plate Features
1、The main ingredient of this series aluminum plate is magnesium element and the content is between 3% and 5%. It is also called aluminum magnesium alloy.
2、With its low density, it features high tensile strength and elongation.
3、This series aluminum plate is a commonly used and mature series in China.

5000 Aluminum Plate Applications
1、With the same area of other series, the weight of this aluminum plate is lighter. As a result, it is used in aviation, such as in the fuel tanks in airplanes.
2、It is widely used in conventional industries.
3、This aluminum plate can be used in continuously casting and rolling. It can be hot rolled. As a result, it can be used in oxidation and deep processing.

Product Name	1000 Series ,2000 Series , 5000 series , 6000 series, 7000 series Aluminum checkered plate sheet
Thickness	1.0mm-6.0mm
Application Field	Mainly used in aircraft structure (such as skin, etc.), aerospace, weapons, engines,Piston, automobile body, ship hull and stress components, etc.
Specification	Alloy	1145, 3003, 3004, 3105, 5005, 5052 & 5251. 2017、2024、2A12
	State	O、T3、T351、T361、T4、T6、T81
	Film type	Blue film, electrostatic blue film transparent film, black and white film, laser film, paper clip, stamping film, stretch film
Product Details	2017	The 2017 aluminum plate is a typical duralumin in al-Cu-Mg system, with good comprehensive performance and the largest amount of duralumin.
	2024	Also known as duralumin, the main alloying element is copper. Has high strength and good cutting performance, has a certain heat resistance, heat treatment, the disadvantage is poor corrosion resistance
	2A12	2A12 aluminum plate products belong to high strength duralumin, which can be strengthened by heat treatment and has good weldability by spot welding.
Product Usage	2017	Aluminum plate is usually used in rivets, general machinery parts, aircraft, ships, transportation, building structural parts, transport vehicle structural parts, propeller components and accessories, etc.
	2024	Mainly used in aircraft structure (such as skin, etc.), aerospace, weapons, engines, pistons, automobile body, ship hull and stress components, etc.
	2A12	2A12 aluminum plate is mainly used for machine exterior parts structure (skin, skeleton, rib beam, frame, etc.), wings, molds, military, transportation vehicles, compressors, rivets, missile components, truck wheels, spiral pulp components and other various structural parts.

Comparison of Alloy Designations for Aluminum Products

Alloy Series	Chinese Standard	American Standard	European Standard
5xxx Series	5052	5052	EN AW-5052
	5083	5083	EN AW-5083
	5754	-	EN AW 5754
6xxx Series	6005	6005	-
	6060	6060	EN AW-6060
	6061	6061	EN AW-6061
	6063	6063	EN AW-6063
	6082	6082	EN AW-6082
	6463	6463	-

Chemical Composition

Alloy	%Si	%Mg	%Mn	%Cu	%Fe	%Cr	%Zn	%Ti	%Others	%Al
EN AW-1050 A	0.25Max	0.05Max	0.05Max	0.05Max	0.40Max	–	0.07Max	0.05Max	–	99.5 Min
EN AW-1070 A	0.20Max	0.03Max	0.03Max	0.03Max	0.25Max	–	0.07Max	0.03Max	–	99.7 Min
EN AW-1100	Si+Fe 0.95 Max	–	0.05 Max	0.05 – 0.20	–	–	0.10 Max	0.05 Max	–	99.0 Min
EN AW-2011	0.40 Max	–	–	5.00 – 6.00	0.70 Max	–	0.30 Max	–	Bi : 0.20 – 0.60Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	0.20 – 0.80	0.40 – 1.20	3.90 – 5.00	0.70 Max	0.10 Max	0.25 Max	0.15 Max	–	Remainder
EN AW-2024	0.50 Max	1.20 -1.80	0.30 – 0.90	3.80 – 4.90	0.50 Max	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	–	1.00 – 1.50	0.05 – 0.20	0.70 Max	–	0.10 Max	–	0.15 Max	Remainder
EN AW-3103	0.50 Max	0.30 Max	0.90 – 1.50	0.10 Max	0.70 Max	0.10 Max	0.20 Max	0.10 Max	–	Remainder
EN AW-6101A	0.30 – 0.7	0.40 – 0.90	0.03 Max	0.05 Max	0.40 Max	–	–	–	0.10 Max	Remainder
EN AW-6005	0.60 – 0.90	0.40 – 0.60	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6351	0.70 – 1.30	0.40 – 0.80	0.40 – 0.80	0.10 Max	0.50 Max	–	0.20 Max	0.20 Max	0.15 Max	Remainder
EN AW-6060	0.30 – 0.60	0.35 – 0.60	0.10 Max	0.10 Max	0.10 – 0.30	0.05 Max	0.15 Max	0.10 Max	–	Remainder
EN AW-6061	0.40 – 0.80	0.80 – 1.20	0.15 Max	0.15 – 0.40	0.70 Max	0.04 – 0.35	0.25 Max	0.15 Max	–	Remainder
EN AW-6063	0.20 – 0.60	0.45 – 0.90	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6082	0.70 – 1.30	0.60 -1.20	0.40 – 1.00	0.10 Max	0.50 Max	0.25 Max	0.20 Max	0.10 Max	–

Mechanical Properties

ALUMINUMALLOY	Grade	NormalTemper	Temper	Tensile StrengthN/mm²	Yield StrengthN/mm²	Elongation%		Brinell HardnessHB
ALUMINUMALLOY	Grade	NormalTemper	Temper	Tensile StrengthN/mm²	Yield StrengthN/mm²	Plate	Bar	Brinell HardnessHB
1XXX	1050	O,H112,H	O	78	34	40	-	20
1XXX	1060	O,H112,H	O	70	30	43	-	19
Al-Cu(2XXX)	2019	O,T3,T4,T6,T8	T851	450	350	10	-	-
Al-Cu(2XXX)	2024	O,T4	T4	470	325	20	17	120
Al-Mn(3XXX)	3003	O,H112,H	O	110	40	30	37	28
Al-Mn(3XXX)	3004	O,H112,H	O	180	70	20	22	45
Al-Si (4XXX)	4032	O,T6,T62	T6	380	315	-	9	120
Al-Mg(5XXX)	5052	O,H112,H	H34	260	215	10	12	68
Al-Mg(5XXX)	5083	O,H112,H	O	290	145	-	20	-
Al-Mg-Si(6XXX)	6061	O,T4,T6,T8	T6	310	275	12	15	95
Al-Mg-Si(6XXX)	6063	O,T1,T5,T6,T8	T5	185	145	12	-	60
Al-Zn-Mg(7XXX)	7003	T5	T5	315	255	15	-	85
Al-Zn-Mg(7XXX)	7075	O,T6	T6	570	505	11	9

At present, various aluminum sheet profiles and building materials will be used in the construction process of many large shopping plazas and office buildings. Among them, alloy aluminum plate with its unique performance advantages, high strength, good corrosion resistance, by many customers and friends welcome. The alloy aluminum plate has high hardness, strong plasticity and strong bearing capacity. Therefore, it has been widely used. So, what are the main applications of alloy aluminum plate?

1. Application of alloy aluminum plate: ships.

The characteristics of ship production are that the materials used should have good performance, not easy to wear, not easy to corrosion, so the alloy aluminum plate is the material of choice. Because the alloy aluminum plate is mainly made of aluminum, good performance, not easy to damage, long service life, can meet the requirements of ship production.

2. Application of alloy aluminum plate: refrigerator.

Refrigerator production is characterized by good sealing performance. Refrigerator in the process of use, need to refrigerate and preserve the effect, so the use of materials can meet these two requirements, so the alloy aluminum plate is the choice. Because the sealing performance of alloy aluminum plate is very good, it can meet the production conditions of refrigerator.

3. Application field of alloy aluminum plate: mold.

There are many moulds, but in general, companies will choose aluminum to make moulds. Because aluminum has many advantages, low density, easy to move production, alloy aluminum plate is the material of die enterprises.

4. Application of alloy aluminum plate: aerospace equipment.

The materials used in space equipment must have good properties, not only in pressure or other aspects, but also must be able to work in harsh environments, so alloy aluminum plates are the choice. Because aluminum does not corrode easily, it can be of value even in harsh environments.

Temper	Definition
O	Annealed
H14	Strain Hardened, 1/2 Hard
H112	Slightly strain harden from working at an elevated temperature or from limited amount of cold work
T4	Solution heat-treated and naturally aged
T5	Cooled from an elevated temperature shaping process and then artificially aged
T6	Solution heat-treated and then artificially aged
T651	Solution heat-treated, stress-relieved by stretching a controlled amount and then artificially aged
T66	Solution heat-treated and then artificially aged - mechanical property level higher than T6 achieved through special control of the process (6000 series alloys)
T6511	Solution heated-treaded, stress-relieved by stretching a controlled amount and then artificially aged. Minor straightening is allowed after stretching to comply with standard tolerances

Comparison of Alloy Designations for Aluminum Products

Alloy Series	Chinese Standard	American Standard	European Standard
5xxx Series	5052	5052	EN AW-5052
	5083	5083	EN AW-5083
	5754	-	EN AW 5754
6xxx Series	6005	6005	-
	6060	6060	EN AW-6060
	6061	6061	EN AW-6061
	6063	6063	EN AW-6063
	6082	6082	EN AW-6082
	6463	6463	-
