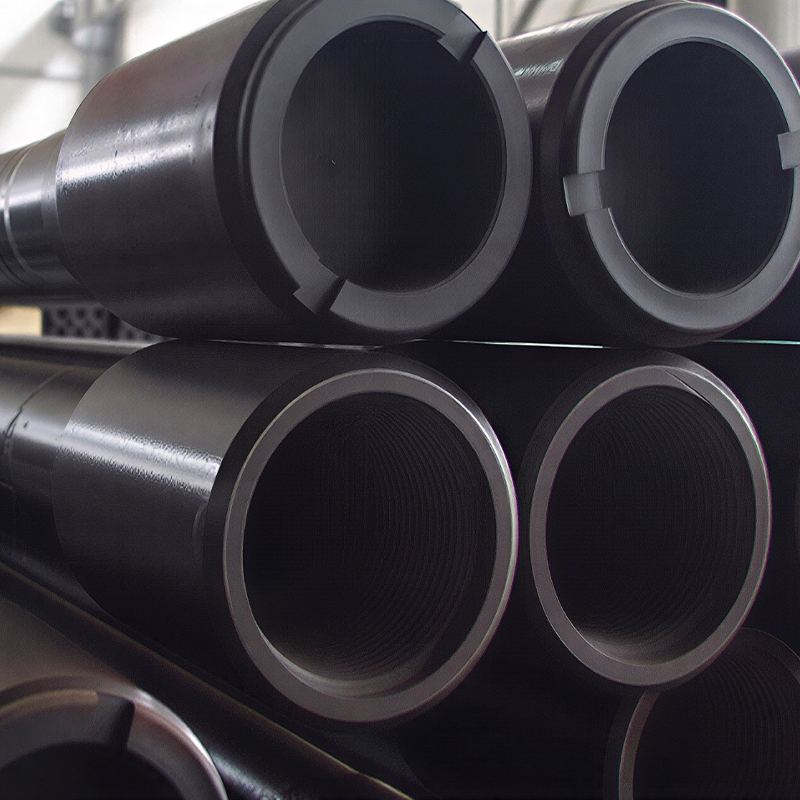

API 5DP G105/S135 Drill Pipe

Name: API 5DP G105/S135 Drill Pipe
SKU: 0

API pipe refers to steel pipe manufactured according to standards developed by the American Petroleum Institute.
These pipes are designed specifically for the oil and gas industry, where materials must withstand high pressure, corrosive environments, mechanical stress, and long-term operation.
The most widely used standards include:
API 5L – Line pipe for oil and gas transportation
API 5CT – Casing and tubing for oil wells
API drill pipe – Pipes used in drilling operations
Unlike general structural steel pipes, API pipes must pass strict inspection procedures including hydrostatic testing, non-destructive testing (NDT), and mechanical property verification.
Because of these requirements, API pipes are widely specified in oil fields, offshore platforms, and long-distance pipeline systems.

WhatsApp: +8615550018368

Email: kyra@zzmetal.com

Online Message

What is an API Pipe?

API Pipes are steel tubes manufactured in accordance with standards set by the American Petroleum Institute (API).

These pipes are purpose-built for the oil & gas industry — materials must withstand high pressure, corrosive environments, mechanical stress, and long-term operation.

Core Standards:

API 5L — Line pipe for energy transportation
API 5CT — Casing & tubing for well construction
API 5DP — Drill pipe for drilling operations

Unlike ordinary carbon steel pipes, API pipes must pass rigorous inspection protocols including hydrostatic testing, Non-Destructive Testing (NDT) , and mechanical performance verification. These stringent requirements make API pipes the industry standard for oilfields, offshore platforms, and long-distance pipeline systems worldwide .

API 5DP :

Drill Pipe manufactured strictly according to API 5DP standard

Yield strength: Min 517 Mpa

Tensile strength: Min 724 Mpa

Pipe body material: High quality alloy seamless pipe of E75

Thread treatment: Phosphorization or copper plating

Drill Pipe in API 5DP, Diameters from 2 3/8'' to 6 5/8'', Grade DZ50, E75, R780, X95, G105, S135

API Drilll Pipe Grade	Minimum Yeild Strength (psi)	Minimum Tensile Strength (psi)
E-75	75000	100000
X-95	95000	105000
G-105	105000	115000
S-135	135000	145000

Size Inch	Nominal Weight	Weight c/w blank end		OD		Wall Thickness		Grade	Upset Type
Size Inch	Nominal Weight	lb/ft	Kg/m	inch	mm	inch	mm	Grade	Upset Type
2-3/8	6.65	6.27	9.33	2.375	60.3	0.280	7.11	E,X,G,S	EU
2-7/8	10.4	9.72	14.47	2.875	73.0	0.362	9.19	E,X,G,S	EU
3 1/2	13.3	12.32	18.34	3.500	88.9	0.368	9.35	E,X,G,S	EU
3 1/2	15.5	14.64	21.79	3.500	88.9	0.449	11.4	E,X,G,S	EU
4	14.0	12.95	19.27	4.000	101.6	0.330	8.38	E,X,G,S	EU,IU
4 1/2	16.6	15.00	22.32	4.500	114.3	0.337	8.56	E,X,G,S	EU,IEU
4 1/2	20.0	18.71	27.84	4.500	114.3	0.430	10.92	E,X,G,S	EU,IEU
5	19.5	17.95	26.70	5000	127.0	0.362	9.19	E,X,G,S	IEU
5	25.6	24.05	35.80	5000	127.0	0.500	12.7	E,X,G,S	IEU
5 1/2	21.9	19.83	29.52	5.500	139.7	0.361	9.17	E,X,G,S	IEU
5 1/2	24.7	22.56	33.57	5.500	139.7	0.415	10.54	E,X,G,S	IEU
6 5/8	25.2	22.2	33.04	6.625	168.275	0.330	8.38	E,X,G,S	IEU
6 5/8	27.7	24.23	36.05	6.625	168.275	0.362	9.19	E,X,G,S	IEU

Main Types of API Pipes

In procurement, buyers typically classify API pipes into three major categories, each supporting different stages of oil & gas production:

🔵 API 5L — Energy Transportation Line

API 5L pipes are designed for transporting crude oil, natural gas, and petroleum products. These pipelines typically connect production sites to refineries and distribution terminals across long-distance networks.

Typical Grade Specifications:

Grade	Application
API 5L Grade B	Standard service
X42, X52	Moderate pressure
X56, X60, X65	High pressure
X70, X80	Ultra-high pressure

📌 Higher grades = higher yield strength = greater pressure capacity

Manufacturing Methods:

SMLS (Seamless)
ERW (Electric Resistance Welded)
LSAW (Longitudinal Submerged Arc Welded)
SSAW (Spiral Submerged Arc Welded)

🟢 API 5CT — Casing & Tubing

API 5CT pipes are used in oil & gas wells. Their purpose is to maintain well integrity and ensure safe production.

Pipe Types:

Casing — Isolates the wellbore and protects against formation collapse
Tubing — Transports hydrocarbons from reservoir to surface

Typical Grades: J55 | K55 | N80 | L80 | P110

⚠️ These pipes must withstand high pressure, temperature variations, and corrosive drilling fluids.

🟡 API 5DP — Drill Pipe

Drill pipe connects the drilling rig to the drill bit, transmitting torque and drilling fluid during operations.

Due to sustained cyclic stress, drill pipes are manufactured from high-strength alloy steel and undergo rigorous fatigue testing 💪.

Applications of API Pipes

API pipes are widely used in industries where safety and reliability are paramount.

⛽ Oil & Natural Gas Transmission Pipelines

Transport oil and natural gas over long distances
Systems require pipes capable of withstanding pressure fluctuations and environmental conditions
API 5L pipes are most commonly used in these applications

🏗️ Oil & Gas Wells

Inside the wellbore, pipes must maintain structural integrity under extreme pressure
Casing protects well structure; tubing delivers hydrocarbons to surface
These systems rely on API 5CT pipes

🌊 Offshore Energy Projects

Offshore pipelines operate in harsh marine environments
Saltwater corrosion, external pressure, and mechanical loads demand pipes with reliable mechanical performance
API pipes are commonly used in subsea pipeline systems
