Carbon Steel Rebar

Name: Carbon Steel Rebar
SKU: 0

Carbon steel bars (also known as rebar or ribbed steel bars) are the most commonly used reinforcing material in concrete structures. Through the mechanical interlock created by their longitudinal and transverse ribs with the concrete, they effectively enhance the concrete’s tensile strength and the structure’s load-bearing capacity.
Carbon steel bars are characterized by high strength, low cost, and excellent workability, and are widely used in infrastructure projects such as buildings, bridges, roads, and water conservancy projects.

WhatsApp: +8615550018368

Email: kyra@zzmetal.com

Online Message

Nominal Diameter and Theoretical Weight：

Nominal Diameter (mm)	Nominal Cross-Sectional Area (mm²)	Theoretical Weight (kg/m)	Application
6	28.3	0.222	Slab reinforcement, structural steel
8	50.3	0.395	Floor slabs, wall distribution bars
10	78.5	0.617	General reinforcement for beams, slabs, columns
12	113.1	0.888	Main reinforcement for frame beams and columns
14	153.9	1.208	Main reinforcement for medium-sized members
16	201.1	1.578	Main reinforcement for frame columns and beams
18	254.5	1.998	Heavy frame structures
20	314.2	2.466	Bridges, large buildings
22	380.1	2.984	Large-span structures
25	490.9	3.853	Bridges, high-rise buildings
28	615.8	4.83	Extra-large structures
32	804.2	6.313	Super high-rise buildings, large bridges
36	1018	7.99	Heavy industrial buildings
40	1256.6	9.865	Dams, nuclear power plants
50	1963.5	15.413	Special large-scale projects

Product Advantages：

💪 High Load-Bearing Capacity

HRB500-grade rebar has a yield strength of ≥500 MPa, which is approximately 50% higher than that of HRB335. This allows for a 15–20% reduction in rebar usage, thereby lowering the structure’s dead weight.

🏗️ Excellent Bonding Performance

The design of transverse and longitudinal ribs creates a mechanical interlock with concrete, resulting in a bonding strength over 40% higher than that of smooth-surface rebar, effectively preventing slippage.

🔄 Good Workability

It can be bent, cut, welded, and mechanically connected (straight-threaded sleeve connections), making it suitable for various complex joint configurations.

🛡️ Multiple Corrosion Protection Options

Epoxy Coating: Corrosion resistance increased by 1,700 times, suitable for marine environments and de-icing salt environments

Hot-Dip Galvanizing: Suitable for outdoor temporary structures

Stainless Steel Cladding: For extreme corrosion environments

♻️ 100% Recyclable

An eco-friendly material that aligns with sustainable development principles.

💰 High Cost-Effectiveness

Carbon steel rebar costs significantly less than stainless steel rebar, making it the economical choice for large-scale projects.

Packaging and Transportation：

Item	Description

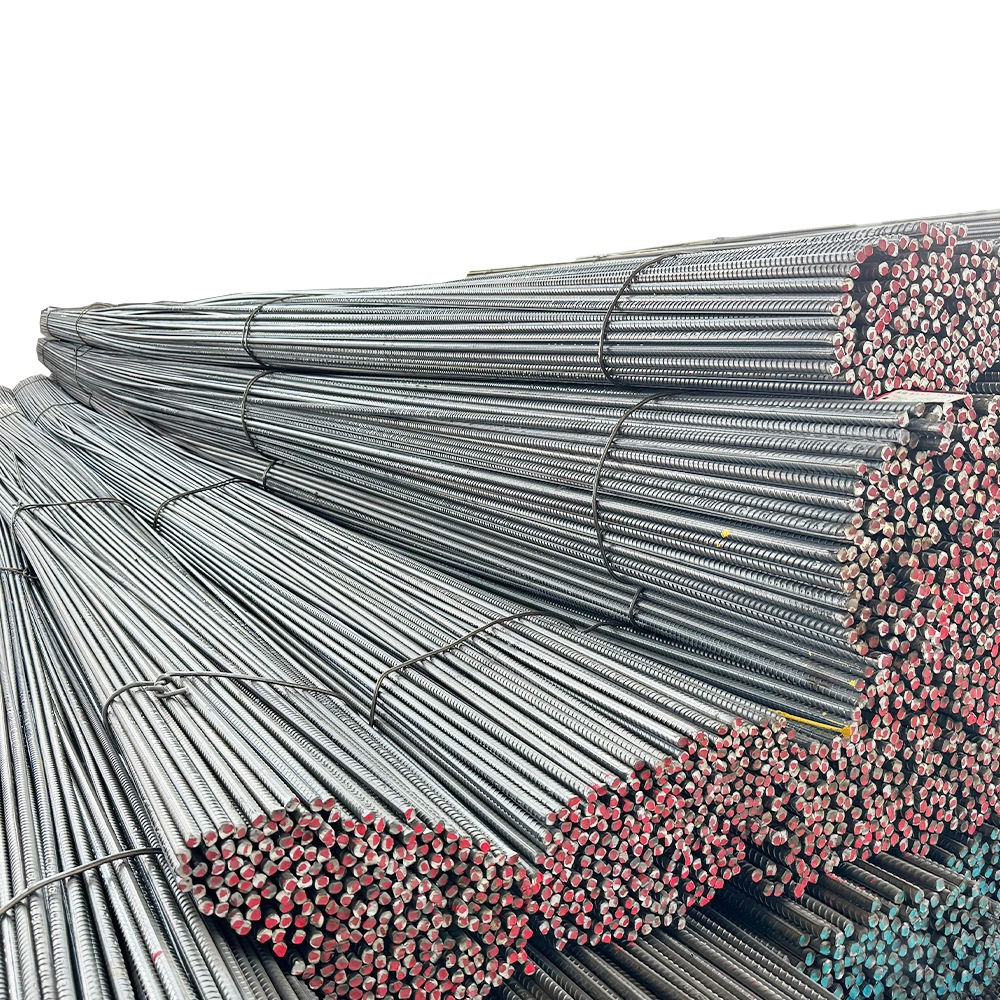

Supply Form	Straight bars (9m/12m fixed length) / Coils (Φ6-14mm)
Packaging	Bundled packaging (2-3 tons per bundle) / Coil packaging
Marking	Label attached to each bundle (specification, grade, heat batch number, weight)
Quality Certificate	Chemical composition, mechanical properties, dimensional tolerance, inspection date

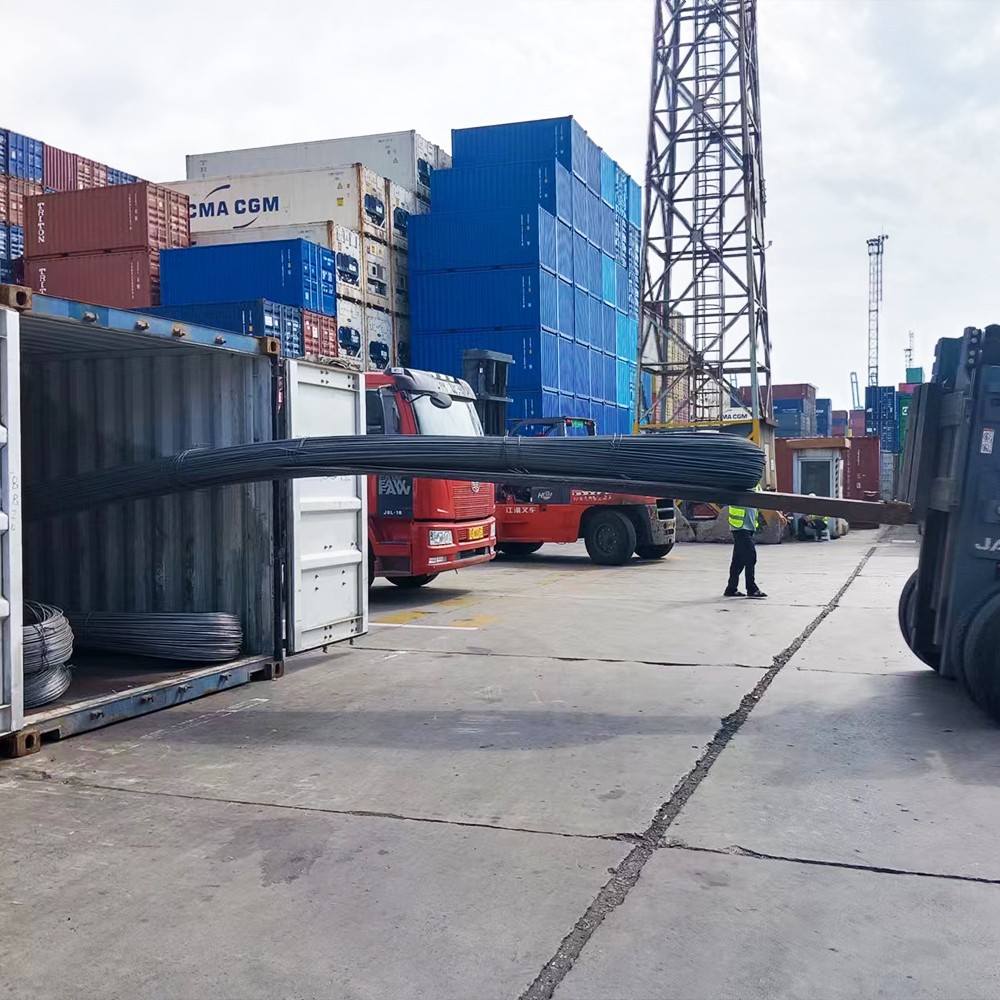

Transportation	Full truckload / Less-than-truckload / Sea freight / Railway
Storage Recommendations	Store indoors, elevate to prevent moisture, avoid contact with acids and alkalis
