What is Silicon steel coil ?
Non-oriented electrical steel usually contains a level of 2%-3.5% silicon. It has similar magnetic properties in all directions, the so-called isotropy. Grain-oriented electrical steel usually contains a level of 3% silicon and is processed in a way to develop ideal properties in the rolling direction. Cold-rolled non-grain-oriented steel (CRNGO) is less expensive than cold-rolled grain-oriented steel (CRGO). CRNGO can be used in cost-oriented applications with the inconstant direction of magnetic flux, such as electric motors and generators. CRGO is usually in coil form and has to be cut into laminations further, being used in transformer core applications, such as certain internal parts in audio output transformers .

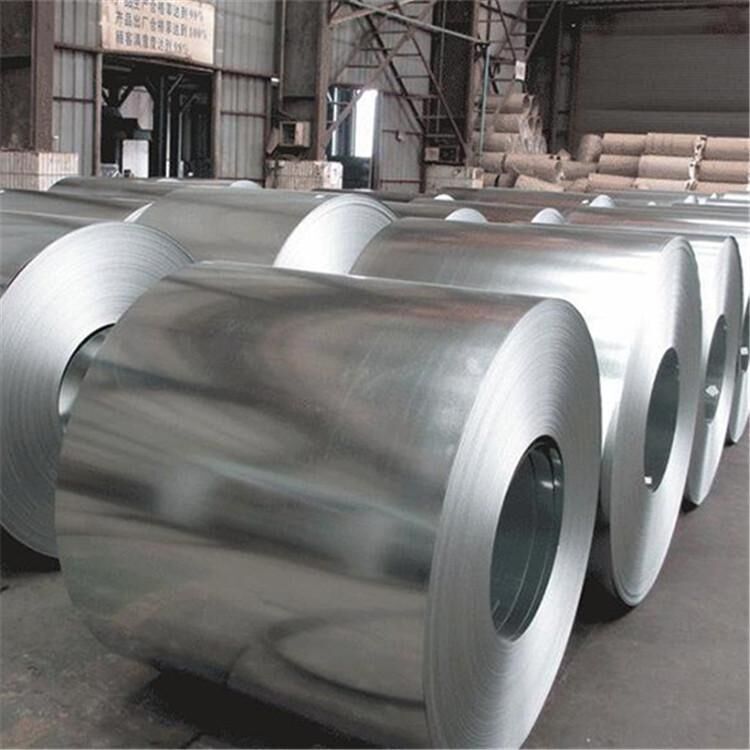

SiliconSteel 50AW530
Silicon steel scrap/Silicon steel coil/Silicon steel sheet/Silicon steel/Silicon steel plate/Silicon steel/Cold-rolled non grain oriented silicon steel coil/Silicon Steel 50AW530/Silicon coil/SILICON STEEL COIL
Shandong Zhuosheng STEEL CO.,LTD, The professional supplier of carbon steel, stainless steel, profile steel , GI, GL,PPGI, PPGI/PPGL, SILICON STEEL COIL,HRC,CRC. Marine steel sheet ,plate , angle steel , H beam ,I beam ,C channel, U channel etc .
Electrical steel is mainly divided into GO electrical steel and NGO electrical steel two categories.Easy magnetization direction of GO electrical steel distribution along the rolling direction, the direction of rolling with high induction, excellent characteristics such as low iron loss and low magnetostriction, while the magnetic domain refinement processing technology, lower iron loss of performance, and are widely used in the transformer industry.
Product Specification and Steel Grade (For Reference)
Standard : AISI , ASTM,BS, DIN, GB,JIS
Grade : 35W250 35W270 35W300 . 50W470 50W600 etc.
1.Grain-Oriented Electrical Steel
Thickness:0.23mm,0.27mm,0.30mm,0.35mm
Width: 900-1200mm
Inner Diameter: 508mm
2.Non-Oriented Electrical Steel
Thickness:0.20mm,0.35mm,0.50mm,0.65mm
Width: 800-1250mm
Inner Diameter: 508mm

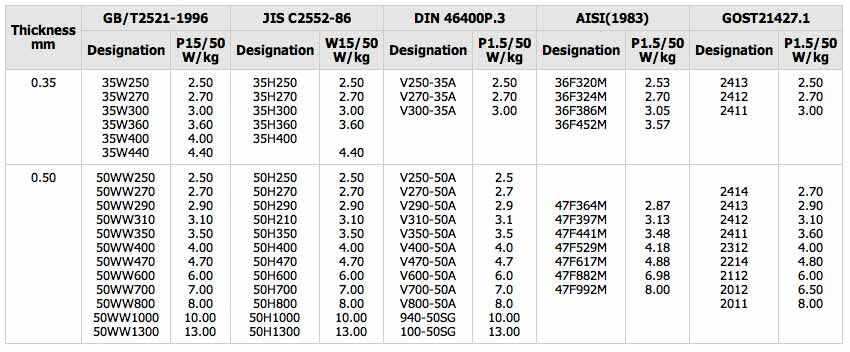

Standard Size
Non-Oriented electrical steel , silicon steel sheet , silicon steel sheet coil
CRNGO Siliconm steel coil, thickness 0.35mm
B35A230 0.35*900+*C B35A250 0.35*900+*C B35A270 0.35*900+*C
B35A300 0.35*900+*C B35A360 0.35*900+*C B35A440 0.35*900+*C
B35A550 0.35*900+*C
CRNGO Siliconm steel coil, thickness 0.50mm
***A250 0.50*900+*C ***A270 0.50*900+*C ***A290 0.50*900+*C
***A310 0.50*900+*C ***A350 0.50*900+*C ***A400 0.50*900+*C
***A440 0.50*900+*C ***A470 0.50*900+*C ***A530 0.50*900+*C
***A540 0.50*900+*C ***A600 0.50*900+*C ***A700 0.50*900+*C
***A800 0.50*900+*C ***A1000 0.50*900+*C ***A1300 0.50*900+*C
***AH300 0.50*900+*C ***AH350 0.50*900+*C ***AH470 0.50*900+*C
***AH600 0.50*900+*C ***AH800 0.50*900+*C ***AH1000 0.50*900+*C
***AH1300 0.50*900+*C
CRNGO Siliconm steel coil, thickness 0.65mm
B65A350 0.65*900+*C B65A400 0.65*900+*C B65A470 0.65*900+*C
B65A530 0.65*900+*C B65A600 0.65*900+*C B65A700 0.65*900+*C
B65A800 0.65*900+*C B65A1000 0.65*900+*C B65A1300 0.65*900+*C

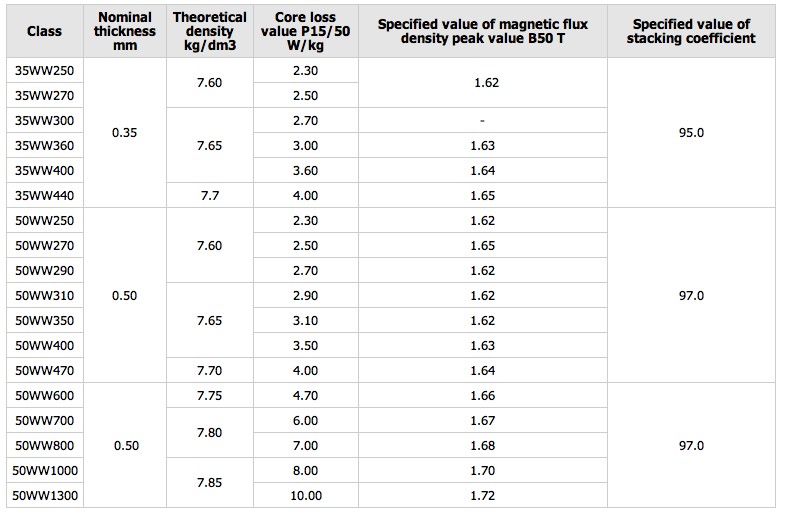

CRNGO Siliconm steel coil, thickness 0.35mm
35WW230 0.35*950+*C 35WW250 0.35*950+*C 35WW270 0.35*950+*C
35WW300 0.35*950+*C 35WW360 0.35*950+*C 35WW400 0.35*950+*C
35WW440 0.35*950+*C
CRNGO Siliconm steel coil, thickness 0.50mm
50WW270 0.50*950+*C 50WW290 0.50*950+*C 50WW310 0.50*950+*C
50WW350 0.50*950+*C 50WW400 0.50*950+*C 50WW470 0.50*950+*C
50WW600 0.50*950+*C 50WW700 0.50*950+*C 50WW800 0.50*950+*C
50WW1000 0.50*950+*C 50WW1300 0.50*950+*C
CRNGO Siliconm steel coil, thickness 0.65mm
65WW530 0.65*950+*C 65WW800 0.65*950+*C
CRNGO Siliconm steel coil, thickness 0.35mm
35TW230 0.35*900+*C 35TW250 0.35*900+*C 35TW270 0.35*900+*C
35TW300 0.35*900+*C 35TW330 0.35*900+*C 35TW360 0.35*900+*C
35TW400 0.35*900+*C 35TW440 0.35*900+*C
CRNGO Siliconm steel coil, thickness 0.50mm
50TW290 0.50*900+*C 50TW310 0.50*900+*C 50TW330 0.50*900+*C
50TW350 0.50*900+*C 50TW400 0.50*900+*C 50TW470 0.50*900+*C
50TW600 0.50*900+*C 50TW800 0.50*900+*C 50TW1000 0.50*900+*C
CRNGO Siliconm steel coil, thickness 0.65mm
65TW310 0.65*900+*C 65TW330 0.65*900+*C 65TW350 0.65*900+*C
65TW400 0.65*900+*C 65TW470 0.65*900+*C 65TW530 0.65*900+*C
65TW600 0.65*900+*C 65TW700 0.65*900+*C 65TW800 0.65*900+*C
65TW1000 0.65*900+*C
Oriented electrical steel , silicon steel sheet , silicon steel sheet coil
G - series
B23G110 0.23*900+*C B23G120 0.23*900+*C B27G110 0.27*900+*C
B27G120 0.27*900+*C B27G130 0.27*900+*C B30G120 0.30*900+*C
B30G130 0.30*900+*C B30G140 0.30*900+*C B35G135 0.35*900+*C
B35G145 0.35*900+*C B35G155 0.35*900+*C
The theoretical density of oriented silicon steel is 7.65kg/dm3 , Min magnetic induction is 1.80T .
P- High magnetic induction series :
B23P085 0.23*900+*C B23P090 0.23*900+*C B23P095 0.23*900+*C
B23P100 0.23*900+*C B27P090 0.27*900+*C B27P095 0.27*900+*C
B27P100 0.27*900+*C B30P100 0.30*900+*C B30P105 0.30*900+*C
B30P110 0.30*900+*C B30P120 0.30*900+*C B35P115 0.35*900+*C
B35P125 0.35*900+*C B35P135 0.35*900+*C
The theoretical density of oriented silicon steel is 7.65kg/dm3 , Min magnetic induction is 1.87-1.88T .
R --The domain refinement high magnetic induction series is the laser notch series :
B23R080 0.23*900+*C B23R085 0.23*900+*C B23R090 0.23*900+*C
B27R085 0.23*900+*C B27R090 0.27*900+*C B27R095 0.27*900+*C
The theoretical density of oriented silicon steel is 7.65kg/dm3 , Min magnetic induction is 1.87T .
Q--Silicon steel series
23Q110 0.23*950+*C 27Q120 0.27*950+*C 27Q130 0.27*950+*C
30Q120 0.30*950+*C 30Q130 0.30*950+*C 35Q145 0.35*950+*C
35Q155 0.35*950+*C
The theoretical density of oriented silicon steel is 7.65kg/dm3 , Min magnetic induction is 1.80T-1.82T .
QG-High magnetic induction series :
23QG090 0.23*950+*C 23QG095 0.23*950+*C 23QG100 0.23*950+*C
27QG095 0.27*950+*C 27QG100 0.27*950+*C 27QG120 0.27*950+*C
30QG105 0.30*950+*C 30QG120 0.30*950+*C
The theoretical density of oriented silicon steel is 7.65kg/dm3 , Min magnetic induction is 1.88T-1.89T .
RK-The domain refinement high magnetic induction series is the laser notch series :
23RK080 0.23*950+*C 23RK085 0.23*950+*C 23RK090 0.23*950+*C
23RK095 0.23*950+*C 27RK085 0.27*950+*C 27RK090 0.27*950+*C
27RK095 0.27*950+*C 27RK100 0.27*950+*C 27RK120 0.27*950+*C
30RK100 0.30*950+*C 30RK105 0.30*950+*C 30RK120 0.30*950+*C
The theoretical density of oriented silicon steel is 7.65kg/dm3 , Min magnetic induction is 1.88T-1.89T .
Application
Silicon steel is the most important magnetic material in industrial applications. The general applications include volt relays or pulse transformers from the generator, automotive, and transformer sectors.
Silicon steel is a soft magnetic material that is used in electrical power transformers, motors and generators. It has a high silicon content of about 3.2 mass %, which increases the electrical resistivity of iron and, therefore, reduces eddy current losses.

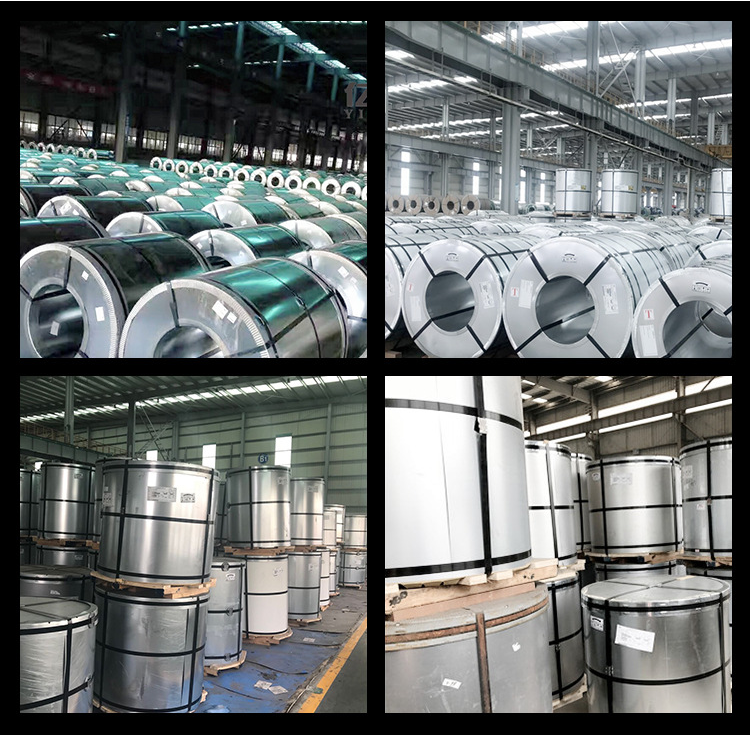

Packing Details:
Each bare coil to be securely tied with two bands through the eye of coil (or not) and one circumferential.
the contact points of these bands on the coil edge to be protect with edge protectors.
Coil then to be properly wrapped with water proof /resistant paper, it then to be properly and completely metal wrapped.
Wooden and iron pallet can be used or as your requirements.
And each packed coil to be properly wrapped with band, three-six such band through the eye of coil at about equal distance
