What is SiliconSteel ?
Silicon steel sheet is an alloy, and iron-silicon alloy formed by adding a small amount of silicon (generally below 4.5%) to pure iron is called silicon steel. This type of core has the highest saturation magnetic induction value of 20000Gs; because of their good magnetoelectric properties, it is easy to mass-produce, the price is cheap, and the mechanical stress has little effect, and it is widely used in the power electronics industry. Such as power transformers, distribution transformers, current transformers and other iron cores. It is the most productive and used material in soft magnetic materials. It is also the most used material in magnetic materials for power transformers. Especially suitable for low frequency and high power. Commonly used are cold-rolled silicon steel sheet DG3, cold-rolled non-oriented electrical steel tape DW, cold-rolled oriented electrical steel tape DQ, suitable for all kinds of electronic systems, household appliances, medium and small power low frequency transformers and chokes, reactors , Inductor cores, these alloys have good toughness, can be punched, cut, and other processing, core lamination and winding type. However, the loss increases sharply at high frequencies, and the general frequency of use does not exceed 400 Hz.
From an application perspective, the choice of silicon steel must consider two factors: magnetics and cost. For small motors, reactors and relays, pure iron or low-silicon steel sheets are available; for large motors, high-silicon hot-rolled silicon steel sheets, single-oriented or non-oriented cold-rolled silicon steel sheets are available; single-oriented cold-rolled silicon steel is often used for transformers. sheet. When used at industrial frequency (50Hz), the thickness of the commonly used strip is 0.2~0.35mm; when used at 400Hz, it is appropriate to choose 0.1mm thickness. The thinner the thickness, the higher the price.

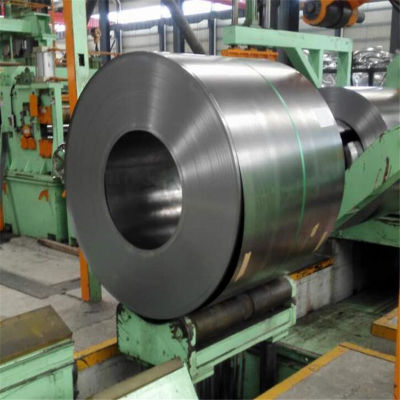

SiliconSteel 50AW530
Silicon steel scrap/Silicon steel coil/Silicon steel sheet/Silicon steel/Silicon steel plate/Silicon steel/Cold-rolled non grain oriented silicon steel coil/Silicon Steel 50AW530/Silicon coil/SILICON STEEL COIL
Shandong Zhuosheng STEEL CO.,LTD, The professional supplier of carbon steel, stainless steel, profile steel , GI, GL,PPGI, PPGI/PPGL, SILICON STEEL COIL,HRC,CRC. Marine steel sheet ,plate , angle steel , H beam ,I beam ,C channel, U channel etc .
Electrical steel is mainly divided into GO electrical steel and NGO electrical steel two categories.Easy magnetization direction of GO electrical steel distribution along the rolling direction, the direction of rolling with high induction, excellent characteristics such as low iron loss and low magnetostriction, while the magnetic domain refinement processing technology, lower iron loss of performance, and are widely used in the transformer industry.
Product Specification and Steel Grade (For Reference)
Standard : AISI , ASTM,BS, DIN, GB,JIS
Grade : 35W250 35W270 35W300 . 50W470 50W600 etc.
1.Grain-Oriented Electrical Steel
Thickness:0.23mm,0.27mm,0.30mm,0.35mm
Width: 900-1200mm
Inner Diameter: 508mm
2.Non-Oriented Electrical Steel
Thickness:0.20mm,0.35mm,0.50mm,0.65mm
Width: 800-1250mm
Inner Diameter: 508mm
Standard Size
Non-Oriented electrical steel , silicon steel sheet , silicon steel sheet coil
CRNGO Siliconm steel coil, thickness 0.35mm
B35A230 0.35*900+*C B35A250 0.35*900+*C B35A270 0.35*900+*C
B35A300 0.35*900+*C B35A360 0.35*900+*C B35A440 0.35*900+*C
B35A550 0.35*900+*C
CRNGO Siliconm steel coil, thickness 0.50mm
***A250 0.50*900+*C ***A270 0.50*900+*C ***A290 0.50*900+*C
***A310 0.50*900+*C ***A350 0.50*900+*C ***A400 0.50*900+*C
***A440 0.50*900+*C ***A470 0.50*900+*C ***A530 0.50*900+*C
***A540 0.50*900+*C ***A600 0.50*900+*C ***A700 0.50*900+*C
***A800 0.50*900+*C ***A1000 0.50*900+*C ***A1300 0.50*900+*C
***AH300 0.50*900+*C ***AH350 0.50*900+*C ***AH470 0.50*900+*C
***AH600 0.50*900+*C ***AH800 0.50*900+*C ***AH1000 0.50*900+*C
***AH1300 0.50*900+*C
CRNGO Siliconm steel coil, thickness 0.65mm
B65A350 0.65*900+*C B65A400 0.65*900+*C B65A470 0.65*900+*C
B65A530 0.65*900+*C B65A600 0.65*900+*C B65A700 0.65*900+*C
B65A800 0.65*900+*C B65A1000 0.65*900+*C B65A1300 0.65*900+*C
CRNGO Siliconm steel coil, thickness 0.35mm
35WW230 0.35*950+*C 35WW250 0.35*950+*C 35WW270 0.35*950+*C
35WW300 0.35*950+*C 35WW360 0.35*950+*C 35WW400 0.35*950+*C
35WW440 0.35*950+*C
CRNGO Siliconm steel coil, thickness 0.50mm
50WW270 0.50*950+*C 50WW290 0.50*950+*C 50WW310 0.50*950+*C
50WW350 0.50*950+*C 50WW400 0.50*950+*C 50WW470 0.50*950+*C
50WW600 0.50*950+*C 50WW700 0.50*950+*C 50WW800 0.50*950+*C
50WW1000 0.50*950+*C 50WW1300 0.50*950+*C
CRNGO Siliconm steel coil, thickness 0.65mm
65WW530 0.65*950+*C 65WW800 0.65*950+*C
CRNGO Siliconm steel coil, thickness 0.35mm
35TW230 0.35*900+*C 35TW250 0.35*900+*C 35TW270 0.35*900+*C
35TW300 0.35*900+*C 35TW330 0.35*900+*C 35TW360 0.35*900+*C
35TW400 0.35*900+*C 35TW440 0.35*900+*C
CRNGO Siliconm steel coil, thickness 0.50mm
50TW290 0.50*900+*C 50TW310 0.50*900+*C 50TW330 0.50*900+*C
50TW350 0.50*900+*C 50TW400 0.50*900+*C 50TW470 0.50*900+*C
50TW600 0.50*900+*C 50TW800 0.50*900+*C 50TW1000 0.50*900+*C
CRNGO Siliconm steel coil, thickness 0.65mm
65TW310 0.65*900+*C 65TW330 0.65*900+*C 65TW350 0.65*900+*C
65TW400 0.65*900+*C 65TW470 0.65*900+*C 65TW530 0.65*900+*C
65TW600 0.65*900+*C 65TW700 0.65*900+*C 65TW800 0.65*900+*C
65TW1000 0.65*900+*C
Oriented electrical steel , silicon steel sheet , silicon steel sheet coil
G - series
B23G110 0.23*900+*C B23G120 0.23*900+*C B27G110 0.27*900+*C
B27G120 0.27*900+*C B27G130 0.27*900+*C B30G120 0.30*900+*C
B30G130 0.30*900+*C B30G140 0.30*900+*C B35G135 0.35*900+*C
B35G145 0.35*900+*C B35G155 0.35*900+*C
The theoretical density of oriented silicon steel is 7.65kg/dm3 , Min magnetic induction is 1.80T .
P- High magnetic induction series :
B23P085 0.23*900+*C B23P090 0.23*900+*C B23P095 0.23*900+*C
B23P100 0.23*900+*C B27P090 0.27*900+*C B27P095 0.27*900+*C
B27P100 0.27*900+*C B30P100 0.30*900+*C B30P105 0.30*900+*C
B30P110 0.30*900+*C B30P120 0.30*900+*C B35P115 0.35*900+*C
B35P125 0.35*900+*C B35P135 0.35*900+*C
The theoretical density of oriented silicon steel is 7.65kg/dm3 , Min magnetic induction is 1.87-1.88T .
R --The domain refinement high magnetic induction series is the laser notch series :
B23R080 0.23*900+*C B23R085 0.23*900+*C B23R090 0.23*900+*C
B27R085 0.23*900+*C B27R090 0.27*900+*C B27R095 0.27*900+*C
The theoretical density of oriented silicon steel is 7.65kg/dm3 , Min magnetic induction is 1.87T .
Q--Silicon steel series
23Q110 0.23*950+*C 27Q120 0.27*950+*C 27Q130 0.27*950+*C
30Q120 0.30*950+*C 30Q130 0.30*950+*C 35Q145 0.35*950+*C
35Q155 0.35*950+*C
The theoretical density of oriented silicon steel is 7.65kg/dm3 , Min magnetic induction is 1.80T-1.82T .
QG-High magnetic induction series :
23QG090 0.23*950+*C 23QG095 0.23*950+*C 23QG100 0.23*950+*C
27QG095 0.27*950+*C 27QG100 0.27*950+*C 27QG120 0.27*950+*C
30QG105 0.30*950+*C 30QG120 0.30*950+*C
The theoretical density of oriented silicon steel is 7.65kg/dm3 , Min magnetic induction is 1.88T-1.89T .
RK-The domain refinement high magnetic induction series is the laser notch series :
23RK080 0.23*950+*C 23RK085 0.23*950+*C 23RK090 0.23*950+*C
23RK095 0.23*950+*C 27RK085 0.27*950+*C 27RK090 0.27*950+*C
27RK095 0.27*950+*C 27RK100 0.27*950+*C 27RK120 0.27*950+*C
30RK100 0.30*950+*C 30RK105 0.30*950+*C 30RK120 0.30*950+*C
The theoretical density of oriented silicon steel is 7.65kg/dm3 , Min magnetic induction is 1.88T-1.89T .
Application
Silicon steel is the most important magnetic material in industrial applications. The general applications include volt relays or pulse transformers from the generator, automotive, and transformer sectors.
Silicon steel is a soft magnetic material that is used in electrical power transformers, motors and generators. It has a high silicon content of about 3.2 mass %, which increases the electrical resistivity of iron and, therefore, reduces eddy current losses.
What is silicon steel used for?
Grain oriented silicon steel uses:
An important soft magnetic material in the military and electronic industries, it is mainly used in high-frequency transformers, high-power magnetic amplifiers, pulse generators, general yoke coils, inductors, storage and memory components, switches and control components, magnetic shielding and Transformers operating under vibration and radiation conditions. Compared with other materials such as ferrite and amorphous materials, the iron core can be made very small due to the high saturation magnetic induction and high magnetic permeability of the 3% Si-Fe thin strip. Because it is a cold-rolled strip, it has a smooth surface, small differences between the same plates, good plate shape, and good processing performance. It can be made into iron cores of various shapes and specifications such as CD type, ring type, and rectangular type. It has a wide range of applications. Wide frequency range (50H-20KH).
Applications of hot rolled silicon steel:
Hot-rolled electrical steel is mainly used for some small motors and micro-motors, such as some low-quality washing machines and range hood motors. There are also some high-specification and low-efficiency motors that can be hot-rolled 450.
Applications of cold rolled non-oriented silicon steel:
Basically non-oriented silicon steel is used in the motor. Gap motors (water pumps) mainly use cold-rolled, non-oriented, uncoated silicon steel. Electric welding machine motors are divided into two types: DC motors and AC motors. DC motors can use uncoated cold-rolled silicon steel, and AC motors mainly use coated ones. 600 non-oriented silicon steel.
Packing Details:
Each bare coil to be securely tied with two bands through the eye of coil (or not) and one circumferential.
the contact points of these bands on the coil edge to be protect with edge protectors.
Coil then to be properly wrapped with water proof /resistant paper, it then to be properly and completely metal wrapped.
Wooden and iron pallet can be used or as your requirements.
And each packed coil to be properly wrapped with band, three-six such band through the eye of coil at about equal distance
