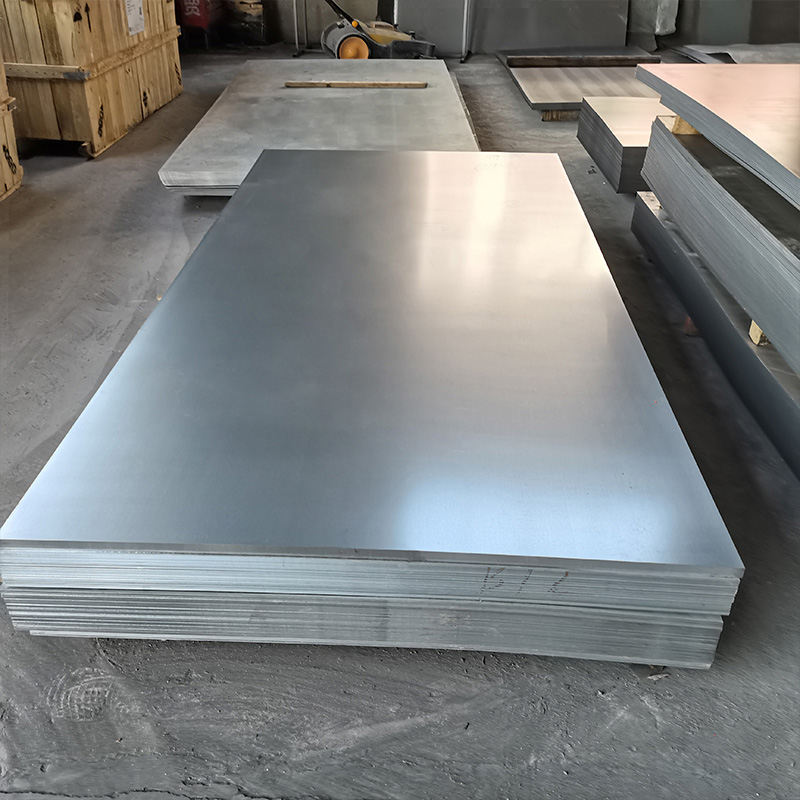

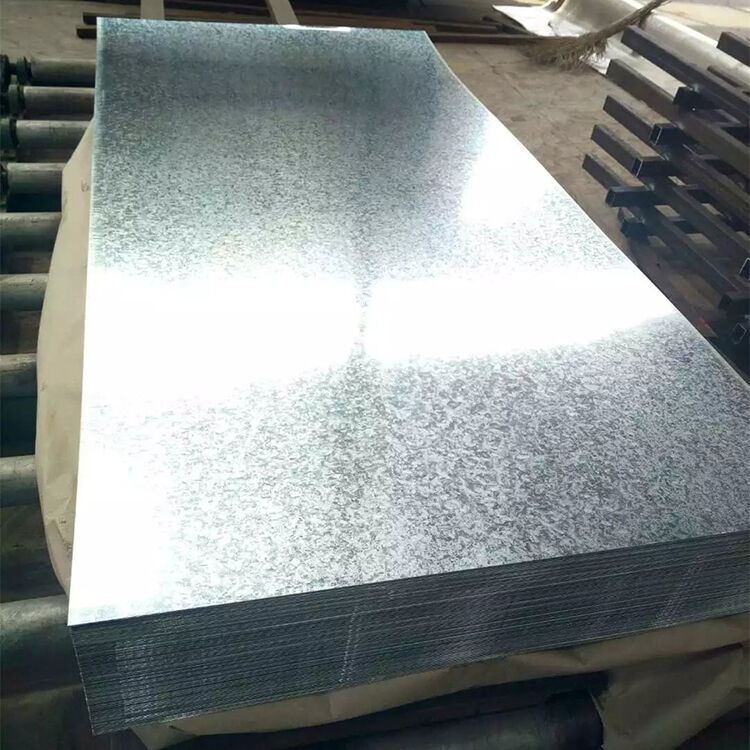

cold rolled galvanized steel sheet plate
hot dip galvanized steel sheet . Hot-dip galvanized steel combines utility with beauty. It consists of tin, chrome, zinc or paint, which are the extra finish applied to the natural steel surface. The application of coating is to protect the surface of steel from oxidation and it is also used to enhance requirements for visual appearance.
Email : sales@zzmetal.com
Whatsapp : 008615550018368
Product Description

Galvanized Steel sheet plate

Galvanized Steel sheet is used cold rolled steel sheet as  substrates by a continuous hot-dip process. This method tightly adheres the coating to the steel with an iron-zinc alloy bonding layer formed by a diffusion process while the heated steel strip is in contact with the molten zinc. One of the drawbacks of Galvanized is that if the Zinc coating is scratched off the steel, the Steel is left unprotected, and is subject to failure. It has excellent corrosion resistance, paintability, and workability due to zinc’s characteristics.


Galvanized Steel sheet plate is specially designed steel sheets that are employed in several furbishing and manufacturing purposes. Steel coils are thin sheets that can be rolled up into incessant coils. The galvanized coils employed outdoor, as it shows anti rusting tendencies. Most significantly, it is used in constructing strong roofing system. Galvanized steel coil can be used outside because of its natural ability to avoid rust or corrosion. The coil itself is usually available in different dimensions. It may range from from 6 inches to 24 inches wide (15 cm to 51 cm), and up to 10 feet (3 m) long when rolled out flat.

Product Specification and Steel Grade (For Reference)


Product namehot rolled and cold rolled Galvanized Steel sheet plate
MaterialASTM A653, DX51D, Q195 ,DC01DX51D+Z,  DX52D+Z , DX53D+Z ,DX54D+Z ,DX56D+ZHC1030 1300MS, HC1150 /1400MS, HC1200/1DC51D+Z , DC52D+Z, DC53D+Z, DC54D+Z ,DC56D+Z, H220PD+Z,H260PD+Z, H300LAD+Z,H340LAD+Z , H380LAD+ZSGCC CSTYPEB, SCGA2370D, SCG270E, SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+ZEN 10142,EN 10147,EN 10292,JIS G3302, ASTM A653/A653M, BQB 420
Zinc Coating20-275g/m2
Thickness0.13-200mm
Width100-4000 mm ,As customer's requirement
length 1000-12000mm ,As customer's requirement
Surface StructureMini/Big Spangle
Surface TreatmentAnti-Finger printing ,Chromated, oiled/ non-oiled
Packagestandard export package (Detailed picture is as follows)Standard Ocean Freight PackageInside: Anti-rust paper,Plastic.Outside: Steel inner and outside guard board,Circle Iron guard board for both side,Outside iron guard board, 3 Radial Strapping and 3 Latitude Strapping.We can also pack according to your requirement.
Hardnesssoft (normal), hard, full hard(G300-G550)
HS code721049
ApplicationHot dip galvanized steel is widely used in light industry, household applicances, automotive and construction industry. For various types of industrial and civil construction industry, light steel keel, building level board, corrugated board, roller shutter doors.
Brand nameZhuosheng STEEL
Country of originChina
Business typeSupplier and manufacturer


Product NameGalvanized Sheet
MaterialASTM/AISI/SGCC/CGCC/TDC51DZM/TDC52DTS350GD/TS550GD/DX51D+Z Q195-q345SGCH/DX51D+Z,DX52D+Z,DX53D+Z,DX54D+Z,S220GD+Z/A653
StandardAISI,ASTM,BS,DIN,GB,JIS
Grade
Width600-1500mm or as required
Thickness0.12-4.0mm or as required
LengthAs customer's requirement
Surface StructureRegular spangle, Minimal Spangle, Zero Spangle, Big Spangle
Surface TreatmentOiled and chromated, Anti fingerprints
Zinc Coating(g/m2)30-275g/m2
Coil Diameter508mm/610mm
Coil Weight3-5 Tons or as required
CertificationISO , SGS , BV
TechniqueCold Rolled / Hot Rolled
EdgeMill Edge/ Silt Edge
QualityMill Test Certificate supplied with the shipment ,third party inspection is acceptable
Application
PackageStandard Ocean Freight PackageInside: Anti-rust paper,Plastic.Outside: Steel inner and outside guard board,Circle Iron guard board for both side,Outside iron guard board, 3 Radial Strapping and 3 Latitude Strapping.We can also pack according to your requirement.
Delivery Time3~15days,according to the order's quantity
MOQ5 Tons
Payment term30%T/T Advance + 70% Balance



Available Size

galvanized Steel Hot Rolled Coil / Strip

Thickness (mm)Mill Edge
Width (mm)
Cut Edge
Width (mm)
Coil Inside
Diameter (mm)
Coil1.50~6.50720~1860
762
Coil6.51~10.00850~1500
762
Strip1.50~6.50
30~720762
galvanized Steel Hot Rolled Plate / Sheet

Thickness (mm)Mill Edge
Width (mm)
Coil Inside
Diameter (mm)
Plate6.00~150500~40001200~18000
Sheet1.50~5.9950~1845760~6100

Application



Application of galvanised steel coils

Galvanised steel coils are widely used in the following industries:

  • In the construction industry: to manufacture structural elements low-rise construction, light steel thin-walled structures, sandwich panels, lining of heat pipelines and various heat insulation, conditioning systems, metal roof shingle, profiled sheeting, culvert pipes, cladding of entry doors, elevators, reinforcement profiles for PVC windows and plastic doors, European-type fasteners for plasterboards, etc

  • In the automotive industry: to manufacture external and internal car body parts, as well as to repair external public transport body parts, eg for buses and trams)

  • In the machine building and instrumentation industries: to manufacture cases for electrical and mechanical equipment, home appliances, metering devices and packing

  • To manufacture houseware (tableware, bowls, buckets, tanks, baths, etc)

  • To manufacture colour-coated (and other type of coating) rolled steel

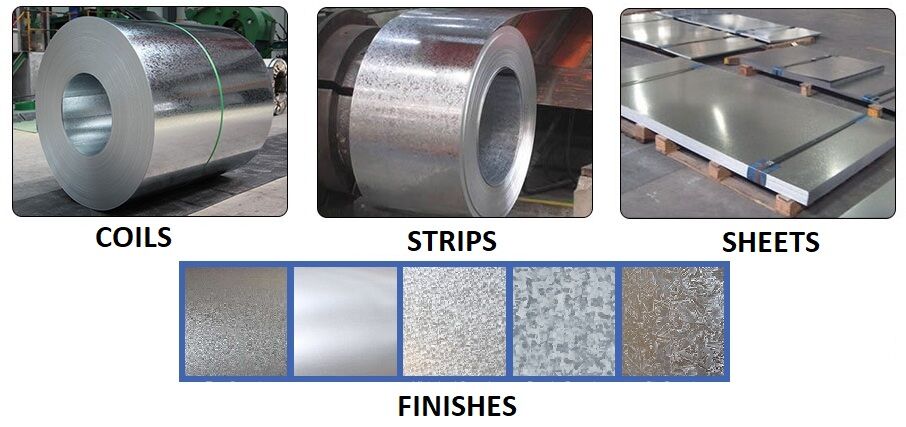

JMT STEEL Galvanized Steel Coils.jpg

Hdg coil classification, product range and properties

Standards applied in different countries to set the requirements for galvanized steel coils specify steel grade and size ranges for these products. Galvanised steel coils are classified based on the following features:

  • Application of coated steel (profiling, cold forming, manufacture of steel structures)

  • Chemical composition of coating material (pure zinc, zinc-iron/zinc-aluminium/aluminium-zinc/zinc-magnesium alloys, etc)

  • Thickness/weight of protective coating


HDG coils according to European astandards

Galvanised steel coils as per the European EN 10346  standards can be coated with zinc, zinc-iron alloy, zinc-aluminium alloy, aluminium-zinc alloy or aluminium-silicon alloy:

  • Zinc coating (Z) is achieved by dipping the prepared strip into a bath with molten alloy, containing at least 99% zinc. This is the most common and traditional way of protecting rolled steel from corrosion.

  • Zinc-iron coating (ZF) is formed by dipping a strip into a bath of molten zinc (at least 99% zinc) with further annealing to form a zinc-iron coating with an Fe content of 8-12%. Such coating is stronger than the traditional zinc coating and has better adhesion with substrate steel due to mutual diffusion between the iron and zinc in the surface layers. That is why this coating is less exposed to lamination or pitting under impact, mechanical stresses or deformation of treated products.

  • Zinc-aluminium coating (ZA) is applied to rolled steel by dipping it into a bath of zinc and about 5% aluminium with a minor content of mishmetal (mix of metals). Rolled steel with such coating has better formability and corrosion protection properties compared with zinc-coated steel.

  • Aluminium-zinc coating (AZ) is applied by dipping steel into a bath of molten metal consisting of 55% aluminium and 1.6% silicon (with the remaining being taken up by zinc). The combined action of these metals ensures the best corrosion protection compared with other coatings.

  • Aluminium-silicon coating (AS) is created by dipping steel into a bath of molten metal containing aluminium and 8-11% silicon. Galvanized steel coil with such coating is highly resistant to oxidation at high temperature (up to 650°C) and highly resistant to chemical corrosion.

Galvanised steel coils manufactured according to the EN 10346 and DSTU EN 10346 standards can be made from the following steels:

  • Low-carbon steel for cold forming (DX51D – DX57D). These products are classified based on suitability for cold forming: DX51D – bending and profiling quality; DX52D – drawing quality; DX53D – deep-drawing quality; DX54D – special deep-drawing quality; DX55D – special deep-drawing quality (only +AS); DX56D – extra deep drawing quality; DX57D – super deep drawing quality.

  • Steel for construction and framing (S220GD – S550GD). Rolled products are arranged in increasing yield stress (Rp0.2), which is indicated in the marking. Rolled products of S220GD – S550GD steel are mainly used in the manufacture of formed sections (Z-, C-, sigma-, U-shaped profiles, etc) for light-gauge steel structures.

  • Steel with high yield strength for cold forming (HX160YD, HX180YD, HX180BD, HX220YD, HX300LAD, etc). Such rolled products are arranged in increasing yield stress (Rp0.2), which is indicated in the marking. The marking also contains the following information: H – high-strength flat rolled products for cold forming; Х – as-rolled condition (hot-rolled or cold-rolled) is not defined; D – designed for hot-dip coating; B – heat-treated steel; Y – steel with higher formability; LA – low-alloy / micro-alloy steel.

  • Cold-formable multi-phase steel (HDT450F, HCT490X, HDT590X, HCT780X, HCT980X, HCT780T, HDT580X, etc). Rolled products are arranged in increasing minimum tensile strength (Rm0.2), which is indicated in the marking. The marking also contains the following information: H – high-strength flat-rolled products for cold forming; С – cold-rolled products; D – hot-rolled products; Т (nnn) – the minimum tensile strength in MPa. The last symbol: F – ferrite-bainite, Х – dual-phase; Т – TRIP, С – complex-phase; М – martensite.

Galvanised coils as per the EN 10346 standard can be coated with zinc, zinc-iron alloy, zinc-aluminium alloy, aluminium-zinc alloy or aluminium-silicon alloy. The coating weight is expressed as grams per square metre and characterises the weight of the coating deposited on the both strip surfaces. The coating type (Z, ZF, ZA, AZ, AS) and nominal weight are indicated in the coating designation. Depending on the type of protective layer, the minimum weight of coating on both surfaces of a galvanized product can be 100-600 g/m2 (average value for three spots).



Coating designationMinimum total coating weight for both surfaces, g/m2Theoretical recommended values of the coating thickness per unit of surface for single-spot tests, micronsDensity,g/cm3
Three-spotSingle-spotReference valueInterval
Z1001008575-127.1
Z140140120107-15
Z2002001701410-20
Z2252251951611-22
Z2752752352015-27
Z3503503002519-33
Z4504503853224-42
Z6006005104232-55

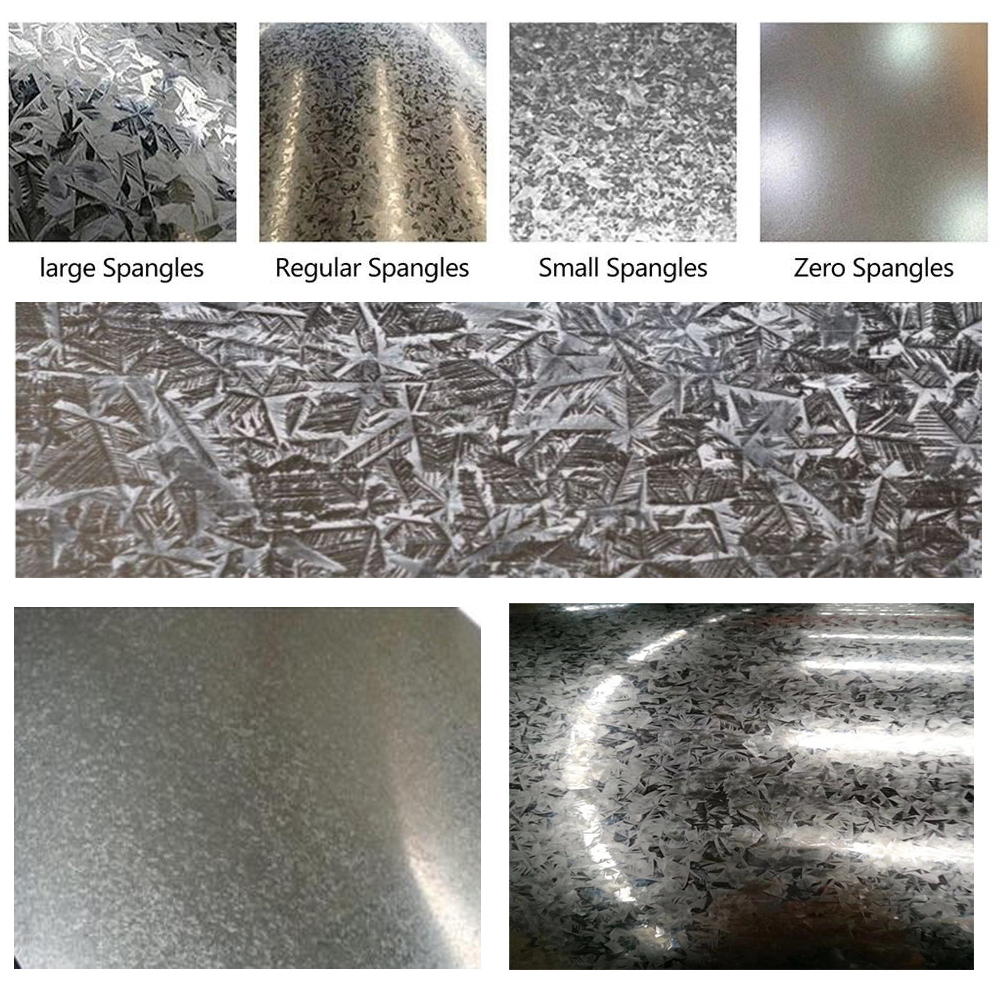

spangle coating  1.jpg




Product Show

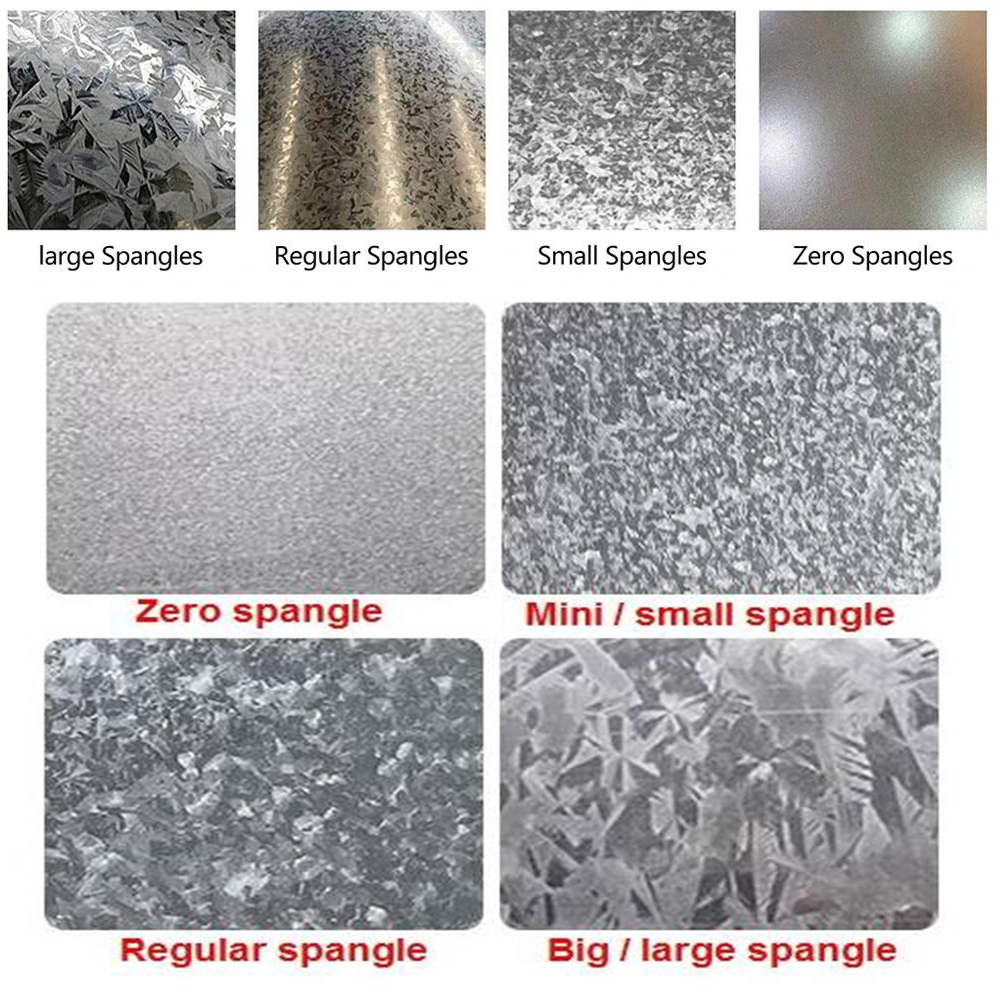

spangle coating .jpg

spangle coating  1.jpg
