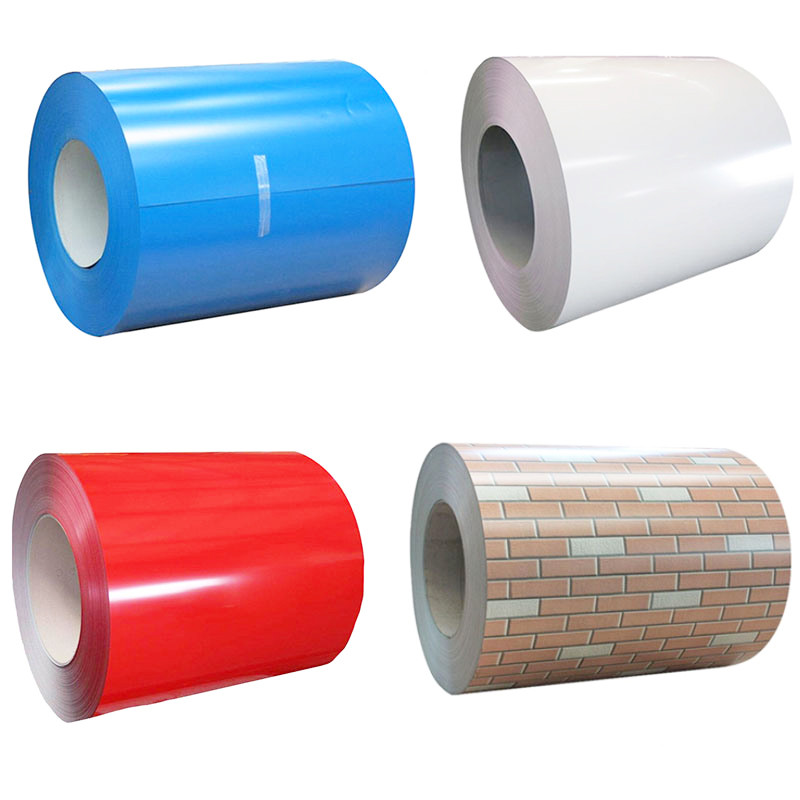

RAL 9016 White PPGI Coil, Glossy Finish 0.3-1.2mm

Product Specification and Steel Grade (For Reference)：

Product name	Pre-painted galvanized steel  coil, PPGI PPGL Steel coil
Material	CNS 10804 (2013) , CNS 15298 (2013) , CNS 15299 (2013) , JIS G3312 (2013) CGCC , CGCD1~3 , CGC340 , CGC400 , CGC440 , CGC490 , CGC570  JIS G3318 (2013)CZACC , CZACH,CZACD1 ,CZAC340 ,CZAC400 ,CZAC440 ,CZAC490 ,CZAC570 , JIS G3322 (2013)CGLCC  CGLCD  CGLC400   ,CGLC440  ,CGLC490 ,CGLC570 , ASTM A755M (2016)AS 2728 (2013) , EN 10169+A1 (2010)
Zinc Coating	color coated
Thickness	0.13-0.8 mm
Width	600-1500 mm
Coil ID	508/610mm
Coil weight	3-8 tons
Coating Material	PE,SMP,HDP,PVDF

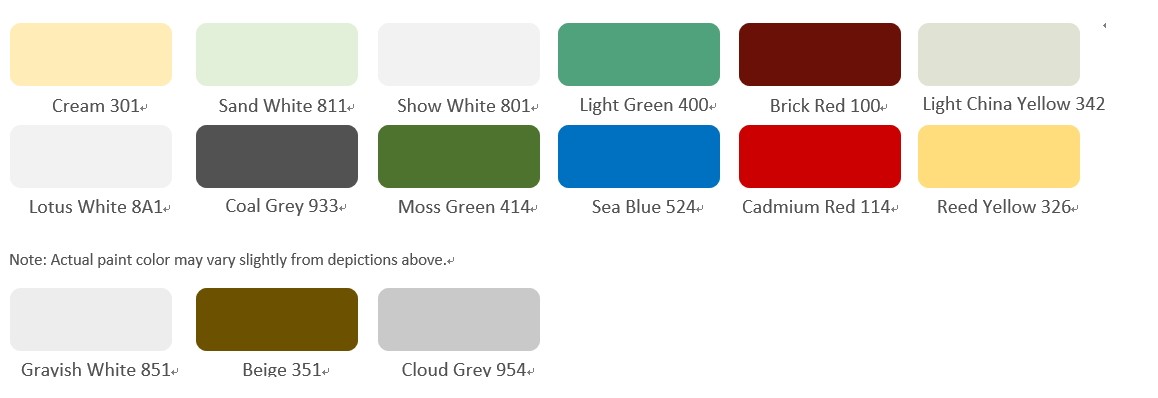

Color	All RAL colors or customers sampels color
Top Coating Thickness	Primer: PU or Epoxy 5μmTopcoat: 15-20μmBack Primer: PU or Epoxy 2μmBack Coat: PE or Epoxy 5-12μm
Back Coating Thickness	Primer: EpoxyTopcoat: PVC PLASTISOL 150- 250μmBack Primer: PU or Epoxy 2μmBack Coat: PVC PLASTISOL 100 - 250μm or Epoxy 7μm
Coating Type	1. Polyester (PE)2. Silicone Modified Polyester (SMP)3. Acrylic4. Polyvinylidene Difluoride (PVDF)
Surface Treatment	Protective film can be appliedMetal EmbossedCedar woodStuccoLeather
Package	standard export package (Detailed picture is as follows)
Hardness	soft (normal), hard, full hard(G300-G550)
HS code	721049
Country of origin	China
Business type	Supplier and manufacturer

Selling Point	Details
🔒     Dual Anti-Corrosion Protection	Hot-dip galvanized layer (30-275g/m²) + organic coating, salt spray test ≥500 hours without rust, service life 15-30 years
🎨    Full Color Customization	Supports RAL standard color chart, Pantone color chart; customizable wood grain / stone grain / brick grain / camouflage and 150+ printed patterns
⚡    Ready to Install	Factory pre-painted, no on-site secondary painting required, saving construction time and labor costs
🔧    Excellent Processing Performance	Direct stamping, bending, shearing, and roll forming compatible with automated production lines, yield rate ≥98%
🌍    Eco-Friendly & Recyclable	Chrome-free passivation process, VOC emissions ≤50g/L, steel recycling rate ≥95%, compliant with LEED green building standards
💰     Low Total Lifecycle Cost	Initial price $600-900/ton, maintenance cycle 10-15 years, total cost significantly lower than stainless steel and aluminum sheets

Available Size：

galvanized Steel Hot Rolled Coil / Strip

	Thickness (mm)	Mill Edge Width (mm)	Cut Edge Width (mm)	Coil Inside Diameter (mm)
Coil	1.50~6.50	720~1860		762
Coil	6.51~10.00	850~1500		762
Strip	1.50~6.50		30~720	762

PPGI  PPGL COIL  / Sheet

	Thickness (mm)	Mill Edge Width (mm)	Coil Inside Diameter (mm)
Plate	6.00~150	500~4000	1200~18000
Sheet	1.50~5.99	50~1845	760~6100



Name	Thickness	Width
Pre-painted Hot-dip Galvanized Steel Coil	0.2~1.5mm	600~1250mm
Pre-painted 5% Al-Zn Coated Steel Coil	0.2~1.5mm	600~1250mm
Pre-painted 55% Al-Zn Coated Steel Coil	0.2~1.38mm	600~1250mm

Pre-painted Hot-dip Galvanized Steel Coil：

Applications：

🏗️ Construction Sector (approx. 80%)

Roof panels, wall panels, ceilings, partitions

Convention centers, sports arenas, aviation hubs, schools, residential buildings

Building-Integrated Photovoltaics (BIPV) mounting systems, energy storage equipment enclosures

🏠 Home Appliances

Refrigerators, air conditioners, washing machines, microwave oven enclosures and internal components

Bread makers, freezer panels

🚗 Automotive and Transportation

Car bodies, interior components, underbody protection

Containers, trailer bodies, bus shelters

🌿 Agriculture and Public Infrastructure

Greenhouses, livestock fencing

Billboards, signage, guardrails, trash cans, lockers

🏢 Interior Design

Interior panels for medical facilities, office buildings, airports, and high-speed rail stations

Wood-grain/metal-finish decorative panels

PPGI PPGL steel coil Packing Details

Standard Export Packing:

• 4 eye bands and 4 circumferential bands in steel
• Galvanized metal fluted rings on inner and outer edges
• Galvanized metal and waterproof paper wall protection disk
• Galvanized metal and waterproof paper around circumference and bore protection

About the sea worthy packaging:  extra reinforcement before shipment to ensure that the goods are safer and less damaged to customers.
