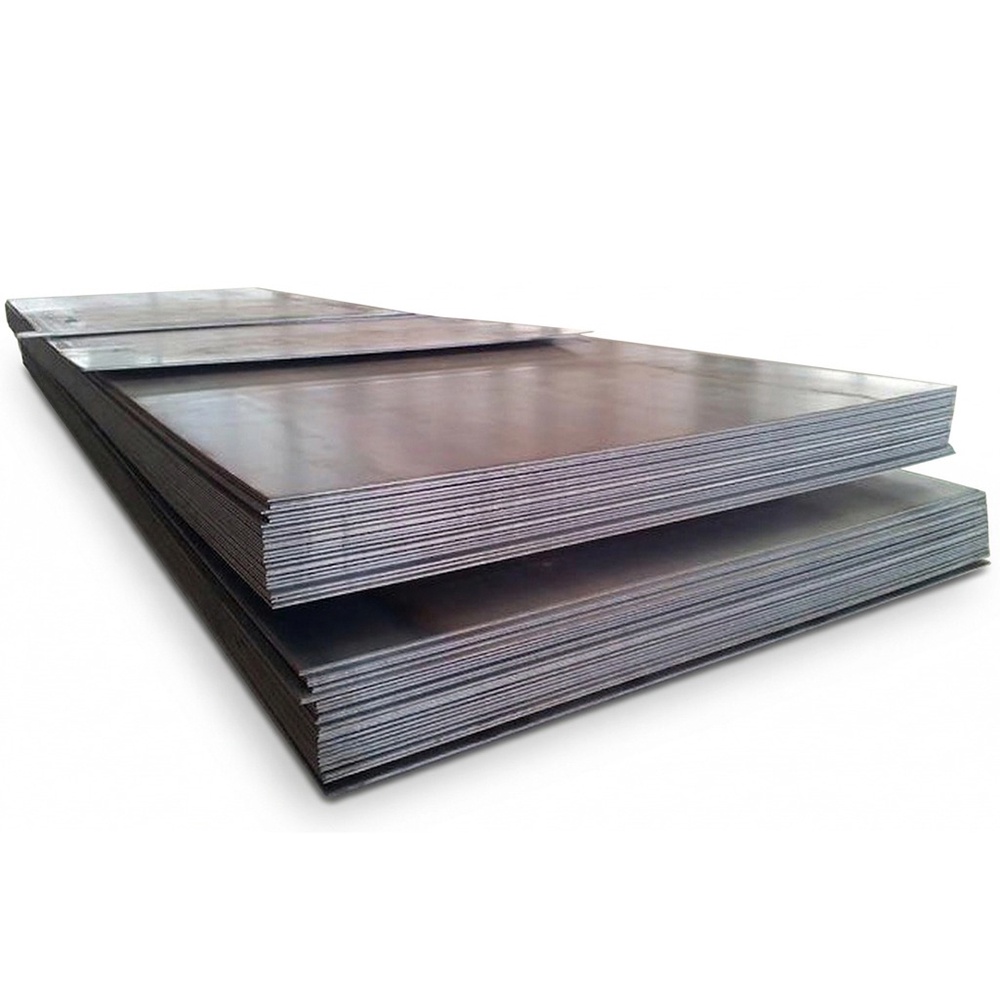

ASTM A36 Mild Steel Plate Custom Size 1500x6000mm Cut to Size Construction Grade

Name: ASTM A36 Mild Steel Plate Custom Size 1500x6000mm Cut to Size Construction Grade
SKU: 0

Carbon steel plates are made from an alloy comprised of iron and carbon. Carbon Steel Plate is one of the most commonly used steels in the United States. Alloy steels can contain a variety of elements including chromium, nickel, and vanadium.

WhatsApp: +8615550018368

Email: kyra@zzmetal.com

Online Message

What is marine grade steel plate?

Marine Grade Steel is a type of structural alloy steel which is standardized by the American Bureau of Shipping (ABS) for specific use in the ship building industry. This group of alloy steel is engineered to be stronger and able to withstand harsh marine conditions.

What are marine grade carbon steels?

There are various Carbon steel grades available such as AH36, DH36, and EH36, that are commonly used in marine environments. These grades have more alloying elements like chromium and manganese that offer more strength and corrosion resistance. These grades are approved by the American Bureau of Shipping.

Product Specification and Steel Grade (For Reference)

Quality	Testing direction	Material-No.	Yield point Rp0,2 (MPa)	Tensile strength Rm (MPA)	Elongation A80 (in %) min.	r-Value 90° min.	n-Value 90° min.	Old Description
DC01	Q	1.0330	≤280	270 - 410	28			St 12-03
DC03	Q	1.0347	≤240	270 - 370	34	1,30		St 13-03
DC04	Q	1.0338	≤210	270 - 350	38	1,60	0,18	St 14-03
DC05	Q	1.0312	≤180	270 - 330	40	1,90	0,20	St 15-03
DC06	Q	1.0873	≤170	270 - 330	41	2,10	0,22
DC07	Q	1.0898	≤150	250 - 310	44	2,50	0,23

Application	JIS	ASTM	SAE
Commercial Quality	G3131 SPHC	A569 A635 A659 A1011 CS Type A, B, C	1006~1025
Drawing Quality	G3131 SPHD	-	1006-1010
Deep Drawing Quality	G3131 SPHE	A622 A1011 DS Type A, B	1006~1010
General Structure (T.S. < 490 N/mm₂)	G3101 SS330 SS400 G3106 SM400A G3132 SPHT1 SPHT2 SPHT3	A36 A283 GR.C A570 GR.30~40 A1001 SS GR.30~40	1010~1025
General Structure (T.S. ≧ 490 N/mm₂)	G3101 SS490 G3106 SM490A SM490A SM490YA G3132 SPH4	A570 GR.45~50 A607 GR.45~70 A1011 SS GR.45, 50 A1011 HSLAS GR.45~70	J1392 050X

Available Size

**Carbon Steel Hot Rolled Coil / Strip**
	Thickness (mm)	Mill Edge Width (mm)	Cut Edge Width (mm)	Coil Inside Diameter (mm)
Coil	1.50~6.50	720~1860		762
Coil	6.51~10.00	850~1500		762
Strip	1.50~6.50		30~720	762

**Carbon Steel Hot Rolled Plate / Sheet**
	Thickness (mm)	Mill Edge Width (mm)	Coil Inside Diameter (mm)
Plate	6.00~150	500~4000	1200~18000
Sheet	1.50~5.99	50~1845	760~6100

Parameter：

Product	Hot rolled DH36 ABS marine carbon steel plate sheet	Cold rolled AH36 Marine carbon steel plate sheet
Thickness	3.0mm-200mm	0.3mm-6.0mm
Standard Width	1240mm/1500mm/1800mm/2000mm/2200mm	1000mm/1219mm/1500mm
Standard Length	2438mm/6000mm or as client's requirement	2000mm/2439mm/3000mm or as per client's requirement
Standard	ABS ASTM,JIS,SUS,GB,DIN	ASTM,JIS,SUS,GB,DIN
Packing	Standard export packing for marine Carbon steel sheet: 1.surface , 2: bundle package, 3:wooden case,wooden pallet package, 4:container or bulk, 5:special according to customer's request
Application	ABS Marin carbon Steel Sheet are widely used in below fields: AH36, DH36, and EH36, that are commonly used in marine environments. These grades have more alloying elements like chromium and manganese that offer more strength and corrosion resistance. These grades are approved by the American Bureau of Shipping . ABS grades are used in the Ship Building(Marine) and mobile offshore drilling units and structures.
