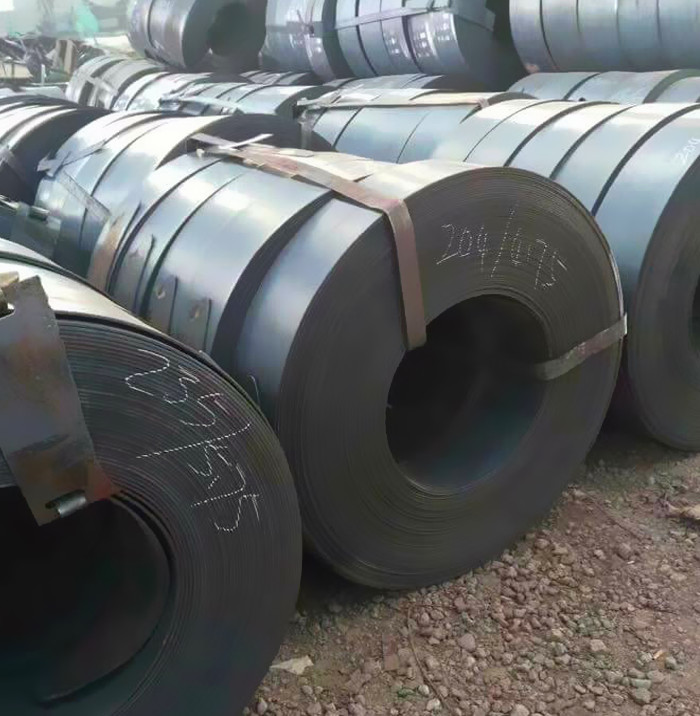

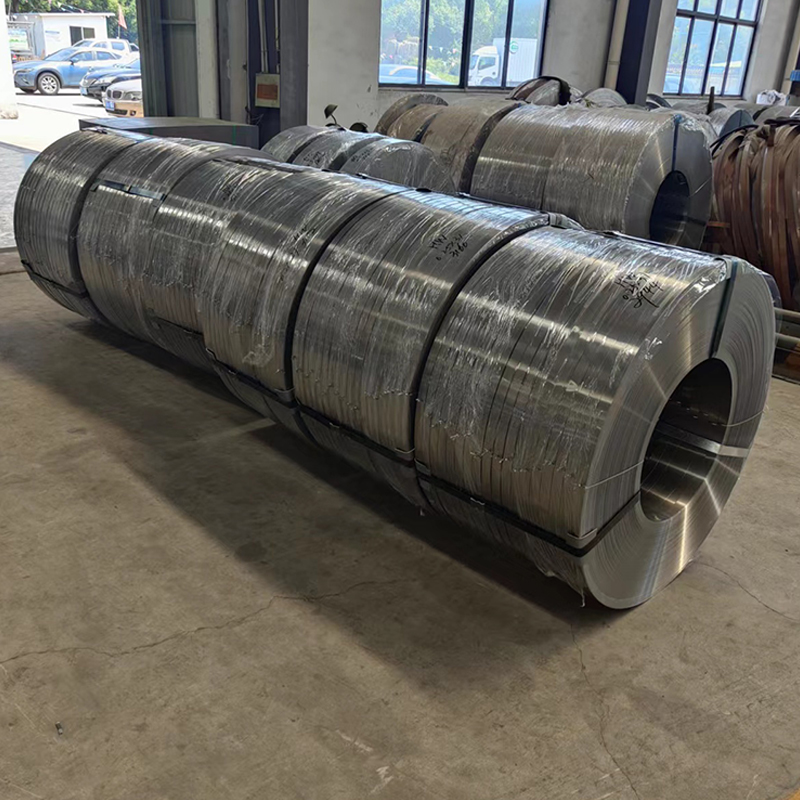

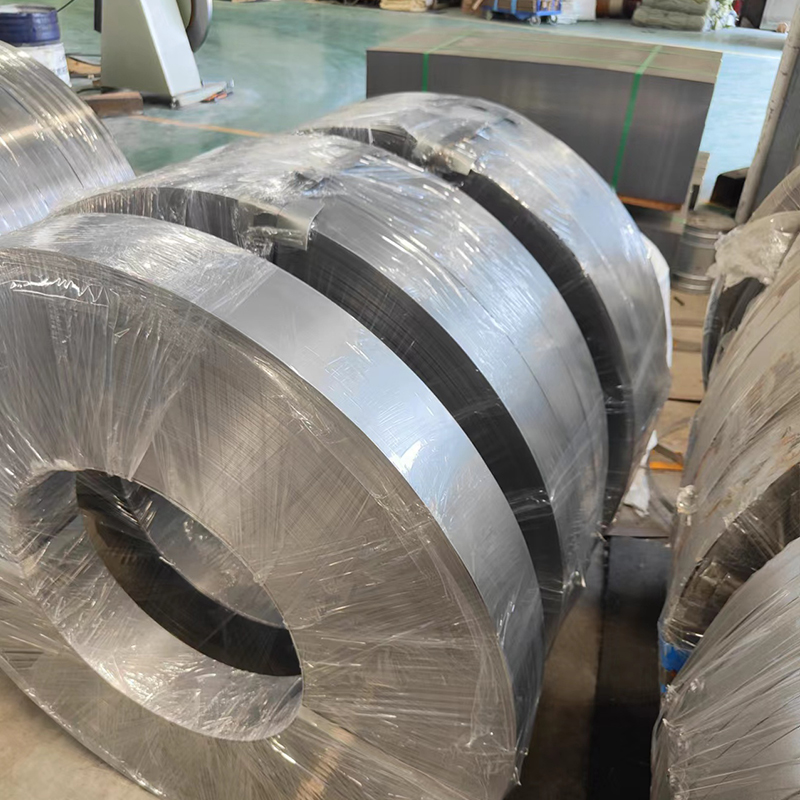

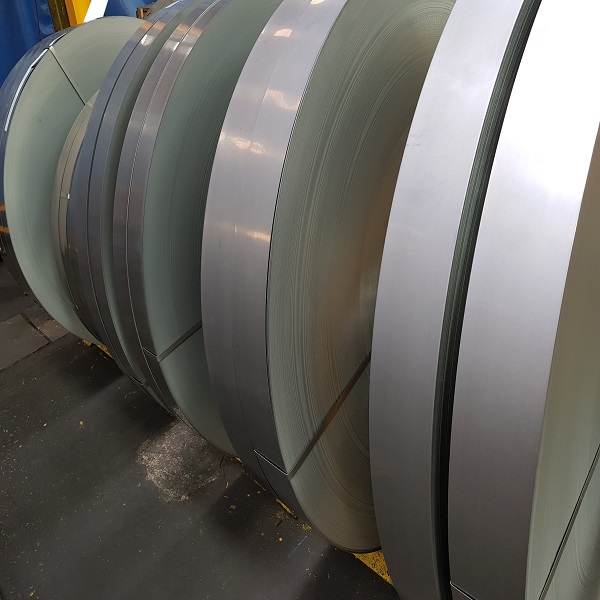

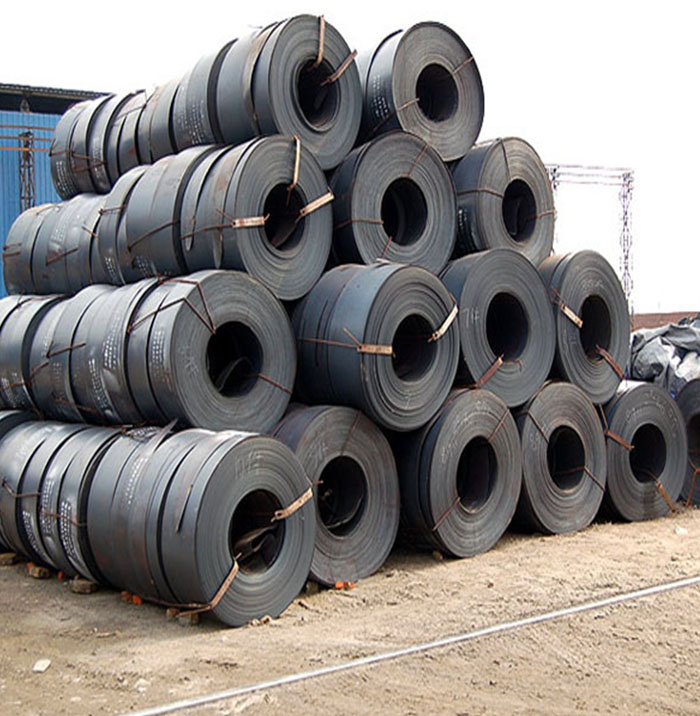

hot rolled steel coil HR S235JR EN10025 carbon steel strip
hot rolled steel coil HR S235JR EN10025 carbon steel strip , carbon steel strip
Email : kyra@zzmetal.com
Whatsapp : 008613026578856
Product Description

What is carbon steel plate coil strip?

Carbon steel strip are made from an alloy comprised of iron and carbon. Carbon Steel Plate is one of the most commonly used steels in the United States. Alloy steels can contain a variety of elements including chromium, nickel, and vanadium.

Cold rolled steel coil Low Carbon Steel coil strip

Product Description

The properties of carbon steel are high hardness, strength, wear resistance and anti-corrosion.

Carbon steel is an alloy with carbon and iron, with carbon content up to 2.1% by weight. The increase in the carbon percentage will raise steel’s hardness and strength, but it will be less ductile. Carbon steel has good properties in hardness and strength, and it is less expensive than other steels.


Product name:  hot rolled steel coil s235jr hr carbon steel strip belt for welded pipe

Key words: hot rolled steel coils  , HR Steel strip

Standards: GB/ASTM/SS400/ST52

Material: Q195 Q235 Q345 SPCC DC01 A36  ,ST12 ST37 S355J2  SPCD SPCE  DC02 DC03 DC04   ST13 ST14 ST15

Width:   10mm--1250mm

Thickness:  0.5mm  0.7mm  1.0mm  1.2mm   1.5mm   2.0mm

Type: in coils ,  in rolled

Coil weight: 1.5-4 tons , customized size

Technology: Hot rolled  and cold rolled ,

Surface treatment:    black finish, pickled finish, and shot-blasted finish

Application: steel profile/making pipe  ,   Welding Steel Pipes ,   Vehicles  , Machinery  , Pressure Vessel  , Bridge  , Watercraft


Product Specification and Steel Grade (For Reference)

QualityTesting directionMaterial-No.Yield point Rp0,2  (MPa)Tensile strength Rm (MPA)Elongation A80 (in %) min.r-Value 90° min.n-Value 90° min.Old Description
DC01Q1.0330≤280270 - 41028

St 12-03
DC03Q1.0347≤240270 - 370341,30
St 13-03
DC04Q1.0338≤210270 - 350381,600,18St 14-03
DC05Q1.0312≤180270 - 330401,900,20St 15-03
DC06Q1.0873≤170270 - 330412,100,22
DC07Q1.0898≤150250 - 310442,500,23


ApplicationJISASTMSAE
Commercial QualityG3131 SPHCA569
A635
A659
A1011 CS Type A, B, C
1006~1025
Drawing QualityG3131 SPHD-1006-1010
Deep Drawing QualityG3131 SPHEA622
A1011 DS Type A, B
1006~1010
General Structure
(T.S. < 490 N/mm2)
G3101 SS330
SS400
G3106 SM400A
G3132 SPHT1
SPHT2
SPHT3
A36
A283 GR.C
A570 GR.30~40
A1001 SS GR.30~40
1010~1025
General Structure
(T.S. ≧ 490 N/mm2)
G3101 SS490
G3106 SM490A
SM490A
SM490YA
G3132 SPH4
A570 GR.45~50
A607 GR.45~70
A1011 SS GR.45, 50
A1011 HSLAS GR.45~70
J1392 050X

Available Size

Carbon Steel Hot Rolled Coil / Strip

Thickness (mm)Mill Edge
Width (mm)
Cut Edge
Width (mm)
Coil Inside
Diameter (mm)
Coil1.50~6.50720~1860
762
Coil6.51~10.00850~1500
762
Strip1.50~6.50
30~720762
Carbon Steel Hot Rolled Plate / Sheet

Thickness (mm)Mill Edge
Width (mm)
Coil Inside
Diameter (mm)
Plate6.00~150500~40001200~18000
Sheet1.50~5.9950~1845760~6100

Application

Carbon hot rolled steel sheets and plates are used in the welding and construction sectors such as railroad tracks, construction equipment, boom cranes, agriculture equipment and heavy vehicle frames. By varying the percentage in carbon steel, it is possible to produce steel with a variety of different qualities. In general, higher carbon content in steel makes steel harder, brittler and less ductile.


Carbon cold rolled steel coils and strips are produced with a highly adaptable manufacturing process, which are extensively used in automobile, washing machines, refrigerators, electrical appliances and steel office equipment. By varying the percentage in carbon steel, it is possible to produce steel with a variety of different qualities. In general, higher carbon content in steel makes steel harder, brittler and less ductile.


Parameter

ProductHot rolled  carbon steel plate sheet  or coil strip
Cold rolled carbon steel plate     sheet or coil
Thickness3.0mm-200mm0.3mm-6.0mm
Standard Width30mm  50mm   100mm 500mm 1240mm/1500mm/1800mm/2000mm/2200mm customized width 30mm  50mm   100mm 500mm    1240mm/1500mm/1800mm/2000mm/2200mm customized width
Standard Length2438mm/6000mm or as client's requirement2000mm/2439mm/3000mm or as per client's requirement
StandardASTM,JIS,SUS,GB,DINASTM,JIS,SUS,GB,DIN
PackingStandard export packing for stainless steel sheet:1.surface polish,2: bundle package,3:wooden case,wooden pallet package,4:container or bulk,5:special according to customer's request
Application carbon Steel Sheet are widely used in below fields:1.Construction field,shipping building industry2.Petroleum and Chemical Industries3.Food and Mechanical Industries4.Boiler Heat Exchange5.Machinery and Hardware Industries

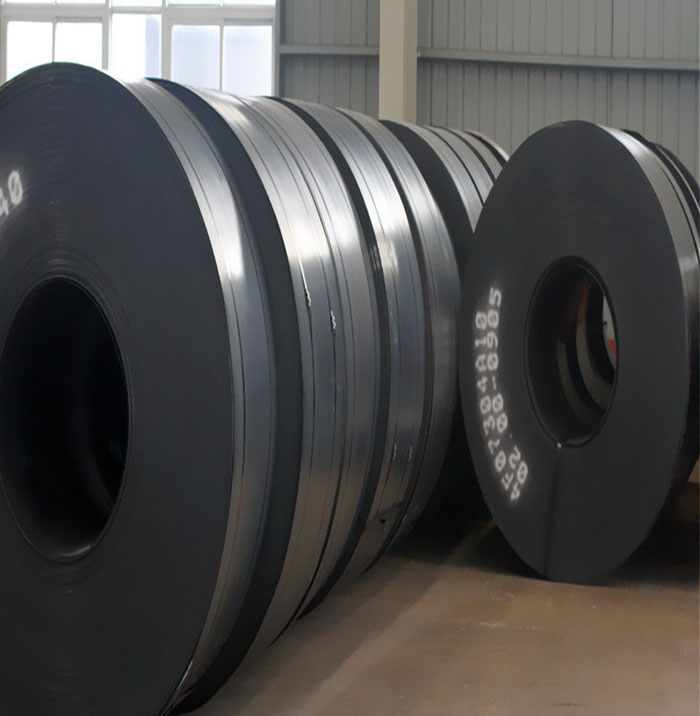

4.jpg  020.jpg

5b973e255aa59.jpg  20190516_1209491(1).jpg







Product Show
