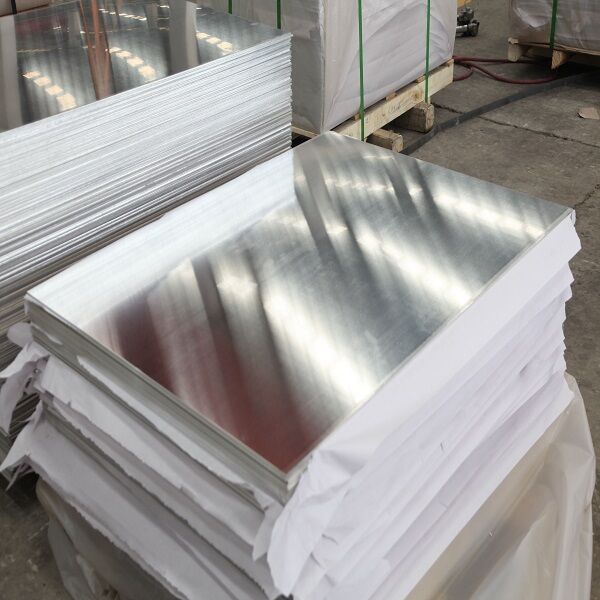

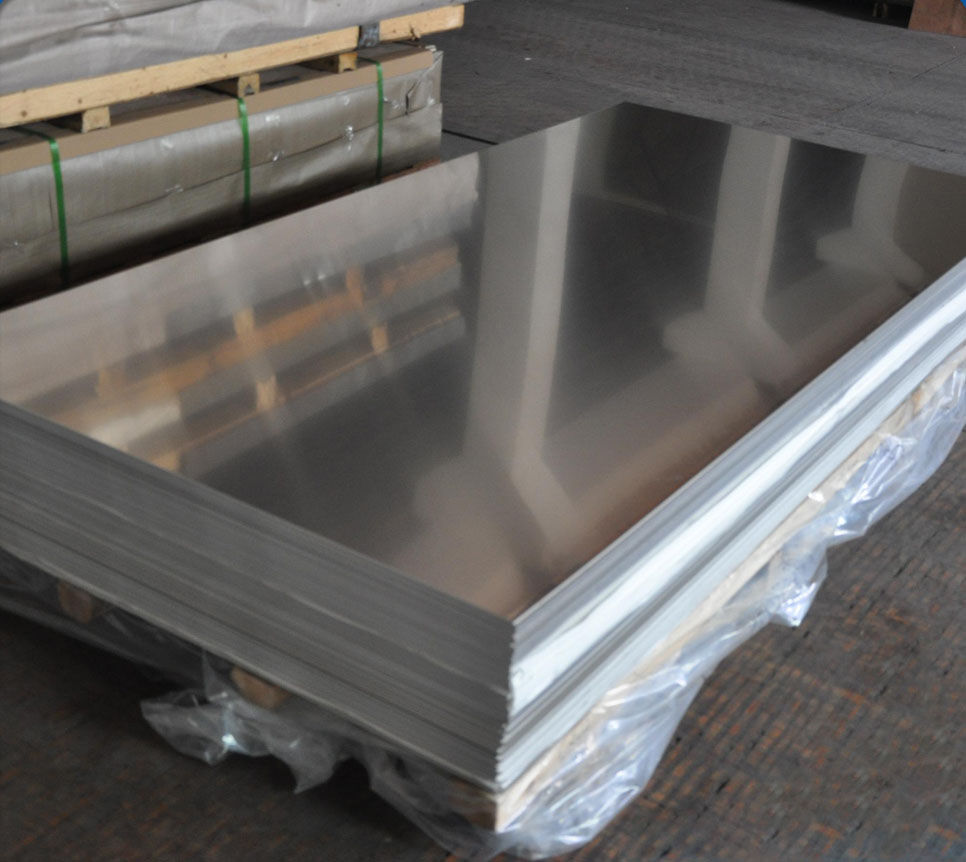

Aluminium alloy sheet plate

6061 Series Aluminum Plate sheet ,6061 Series Aluminum round pipe , 6061 Series Aluminum rod , 6061 Series Aluminum coil

Email : kyra@zzmetal.com

Whatsapp : 008613026578856

Product Description

Product Name	1000 Series ,2000 Series , 5000 series , 6000 series, 7000 series Aluminum checkered plate sheet
Thickness	1.0mm-6.0mm
Application Field	Mainly used in aircraft structure (such as skin, etc.), aerospace, weapons, engines,Piston, automobile body, ship hull and stress components, etc.
Specification	Alloy	1145, 3003, 3004, 3105, 5005, 5052 & 5251. 2017、2024、2A12
	State	O、T3、T351、T361、T4、T6、T81
	Film type	Blue film, electrostatic blue film transparent film, black and white film, laser film, paper clip, stamping film, stretch film
Product Details	2017	The 2017 aluminum plate is a typical duralumin in al-Cu-Mg system, with good comprehensive performance and the largest amount of duralumin.
	2024	Also known as duralumin, the main alloying element is copper. Has high strength and good cutting performance, has a certain heat resistance, heat treatment, the disadvantage is poor corrosion resistance
	2A12	2A12 aluminum plate products belong to high strength duralumin, which can be strengthened by heat treatment and has good weldability by spot welding.
Product Usage	2017	Aluminum plate is usually used in rivets, general machinery parts, aircraft, ships, transportation, building structural parts, transport vehicle structural parts, propeller components and accessories, etc.
	2024	Mainly used in aircraft structure (such as skin, etc.), aerospace, weapons, engines, pistons, automobile body, ship hull and stress components, etc.
	2A12	2A12 aluminum plate is mainly used for machine exterior parts structure (skin, skeleton, rib beam, frame, etc.), wings, molds, military, transportation vehicles, compressors, rivets, missile components, truck wheels, spiral pulp components and other various structural parts.

Comparison of Alloy Designations for Aluminum Products

Alloy Series	Chinese Standard	American Standard	European Standard
5xxx Series	5052	5052	EN AW-5052
	5083	5083	EN AW-5083
	5754	-	EN AW 5754
6xxx Series	6005	6005	-
	6060	6060	EN AW-6060
	6061	6061	EN AW-6061
	6063	6063	EN AW-6063
	6082	6082	EN AW-6082
	6463	6463	-

Chemical Composition

Alloy	%Si	%Mg	%Mn	%Cu	%Fe	%Cr	%Zn	%Ti	%Others	%Al
EN AW-1050 A	0.25Max	0.05Max	0.05Max	0.05Max	0.40Max	–	0.07Max	0.05Max	–	99.5 Min
EN AW-1070 A	0.20Max	0.03Max	0.03Max	0.03Max	0.25Max	–	0.07Max	0.03Max	–	99.7 Min
EN AW-1100	Si+Fe 0.95 Max	–	0.05 Max	0.05 – 0.20	–	–	0.10 Max	0.05 Max	–	99.0 Min
EN AW-2011	0.40 Max	–	–	5.00 – 6.00	0.70 Max	–	0.30 Max	–	Bi : 0.20 – 0.60Pb : 0.20 – 0.60	Remainder
EN AW-2014	0.50 – 1.20	0.20 – 0.80	0.40 – 1.20	3.90 – 5.00	0.70 Max	0.10 Max	0.25 Max	0.15 Max	–	Remainder
EN AW-2024	0.50 Max	1.20 -1.80	0.30 – 0.90	3.80 – 4.90	0.50 Max	0.10 Max	0.25 Max	0.15 Max	0.15 Max	Remainder
EN AW-3003	0.60 Max	–	1.00 – 1.50	0.05 – 0.20	0.70 Max	–	0.10 Max	–	0.15 Max	Remainder
EN AW-3103	0.50 Max	0.30 Max	0.90 – 1.50	0.10 Max	0.70 Max	0.10 Max	0.20 Max	0.10 Max	–	Remainder
EN AW-6101A	0.30 – 0.7	0.40 – 0.90	0.03 Max	0.05 Max	0.40 Max	–	–	–	0.10 Max	Remainder
EN AW-6005	0.60 – 0.90	0.40 – 0.60	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6351	0.70 – 1.30	0.40 – 0.80	0.40 – 0.80	0.10 Max	0.50 Max	–	0.20 Max	0.20 Max	0.15 Max	Remainder
EN AW-6060	0.30 – 0.60	0.35 – 0.60	0.10 Max	0.10 Max	0.10 – 0.30	0.05 Max	0.15 Max	0.10 Max	–	Remainder
EN AW-6061	0.40 – 0.80	0.80 – 1.20	0.15 Max	0.15 – 0.40	0.70 Max	0.04 – 0.35	0.25 Max	0.15 Max	–	Remainder
EN AW-6063	0.20 – 0.60	0.45 – 0.90	0.10 Max	0.10 Max	0.35 Max	0.10 Max	0.10 Max	0.10 Max	–	Remainder
EN AW-6082	0.70 – 1.30	0.60 -1.20	0.40 – 1.00	0.10 Max	0.50 Max	0.25 Max	0.20 Max	0.10 Max	–

Mechanical Properties

ALUMINUMALLOY	Grade	NormalTemper	Temper	Tensile StrengthN/mm²	Yield StrengthN/mm²	Elongation%		Brinell HardnessHB
ALUMINUMALLOY	Grade	NormalTemper	Temper	Tensile StrengthN/mm²	Yield StrengthN/mm²	Plate	Bar	Brinell HardnessHB
1XXX	1050	O,H112,H	O	78	34	40	-	20
1XXX	1060	O,H112,H	O	70	30	43	-	19
Al-Cu(2XXX)	2019	O,T3,T4,T6,T8	T851	450	350	10	-	-
Al-Cu(2XXX)	2024	O,T4	T4	470	325	20	17	120
Al-Mn(3XXX)	3003	O,H112,H	O	110	40	30	37	28
Al-Mn(3XXX)	3004	O,H112,H	O	180	70	20	22	45
Al-Si (4XXX)	4032	O,T6,T62	T6	380	315	-	9	120
Al-Mg(5XXX)	5052	O,H112,H	H34	260	215	10	12	68
Al-Mg(5XXX)	5083	O,H112,H	O	290	145	-	20	-
Al-Mg-Si(6XXX)	6061	O,T4,T6,T8	T6	310	275	12	15	95
Al-Mg-Si(6XXX)	6063	O,T1,T5,T6,T8	T5	185	145	12	-	60
Al-Zn-Mg(7XXX)	7003	T5	T5	315	255	15	-	85
Al-Zn-Mg(7XXX)	7075	O,T6	T6	570	505	11	9

Temper	Definition
O	Annealed
H14	Strain Hardened, 1/2 Hard
H112	Slightly strain harden from working at an elevated temperature or from limited amount of cold work
T4	Solution heat-treated and naturally aged
T5	Cooled from an elevated temperature shaping process and then artificially aged
T6	Solution heat-treated and then artificially aged
T651	Solution heat-treated, stress-relieved by stretching a controlled amount and then artificially aged
T66	Solution heat-treated and then artificially aged - mechanical property level higher than T6 achieved through special control of the process (6000 series alloys)
T6511	Solution heated-treaded, stress-relieved by stretching a controlled amount and then artificially aged. Minor straightening is allowed after stretching to comply with standard tolerances

Comparison of Alloy Designations for Aluminum Products

Alloy Series	Chinese Standard	American Standard	European Standard
5xxx Series	5052	5052	EN AW-5052
	5083	5083	EN AW-5083
	5754	-	EN AW 5754
6xxx Series	6005	6005	-
	6060	6060	EN AW-6060
	6061	6061	EN AW-6061
	6063	6063	EN AW-6063
	6082	6082	EN AW-6082
	6463	6463	-

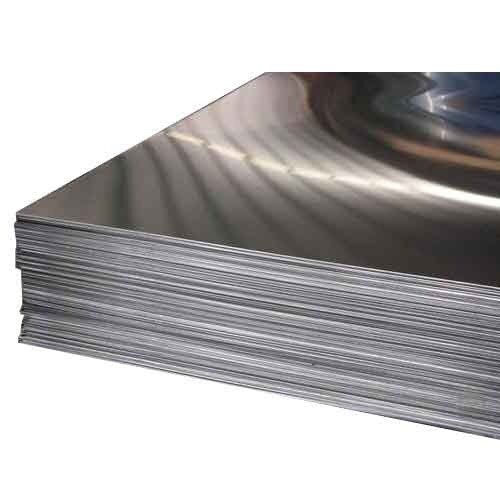

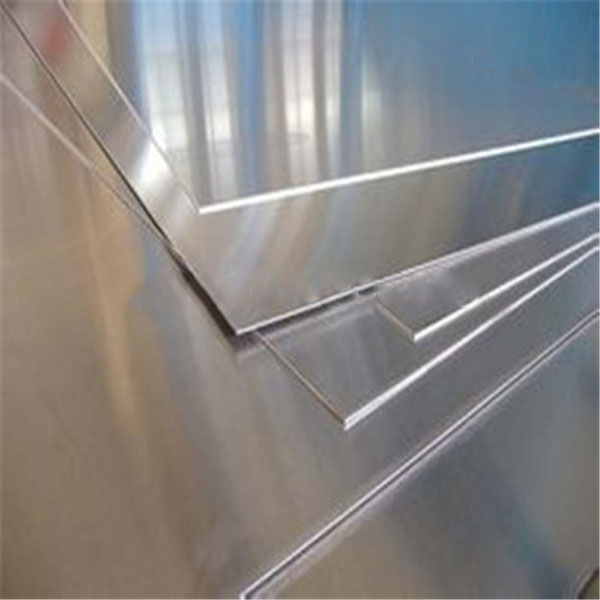

Product Show
